Máquina de fresagem CNC Twotrees TTC450 (Envio direto para UE e EUA, com IVA)
Preço normal
R$ 1.920,00
Preço normal
R$ 3.020,00
Preço promocional
R$ 1.920,00
Preço unitário
por
Frete calculado no checkout.
US version: ships within the US only
EU version: ships within EU countries only
Não foi possível carregar a disponibilidade de retirada.
Preço normal
R$ 1.920,00
Preço normal
R$ 3.020,00
Preço promocional
R$ 1.920,00
Product Video
Larger than Normal,Easier than Others
Powerful,Presice,Sturty

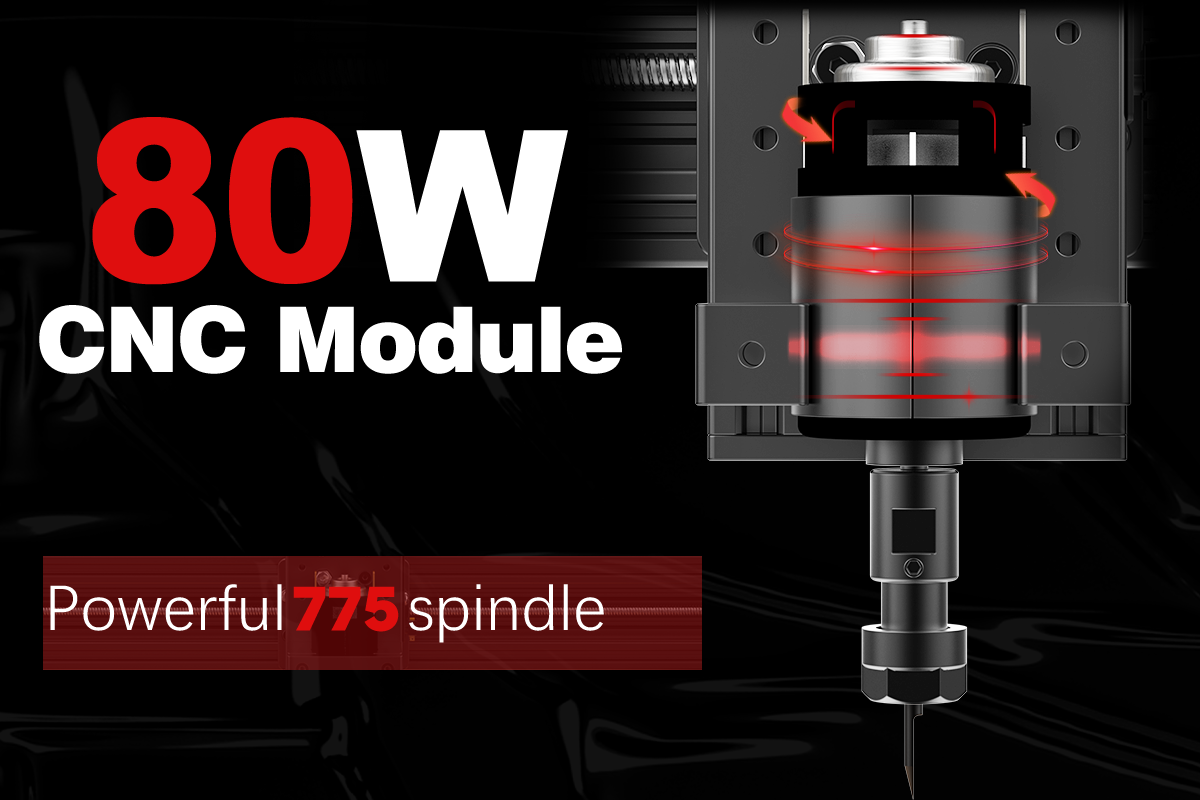

Powerful Spindle
Engraving all types of plastics, soft aluminum,wood,acrylic, PVC,and PCBs makes it suitable for a wide range of projects and materials.
Note: Can not carve hard metal, jade and other hard materials.
Dimensional Accuracy of up to 0.1 mm
Smooth,precise and clean running movement support trapezoidal translation screws.
Metal Body and Aluminum 4080U Profle Modulal
Rigid H-Beam structure, Leadscrew Driven,Y-Axis Dualscrew drive, Z-Axis Optical Axis Drive deliver more stability than the traditional v-slot drive.

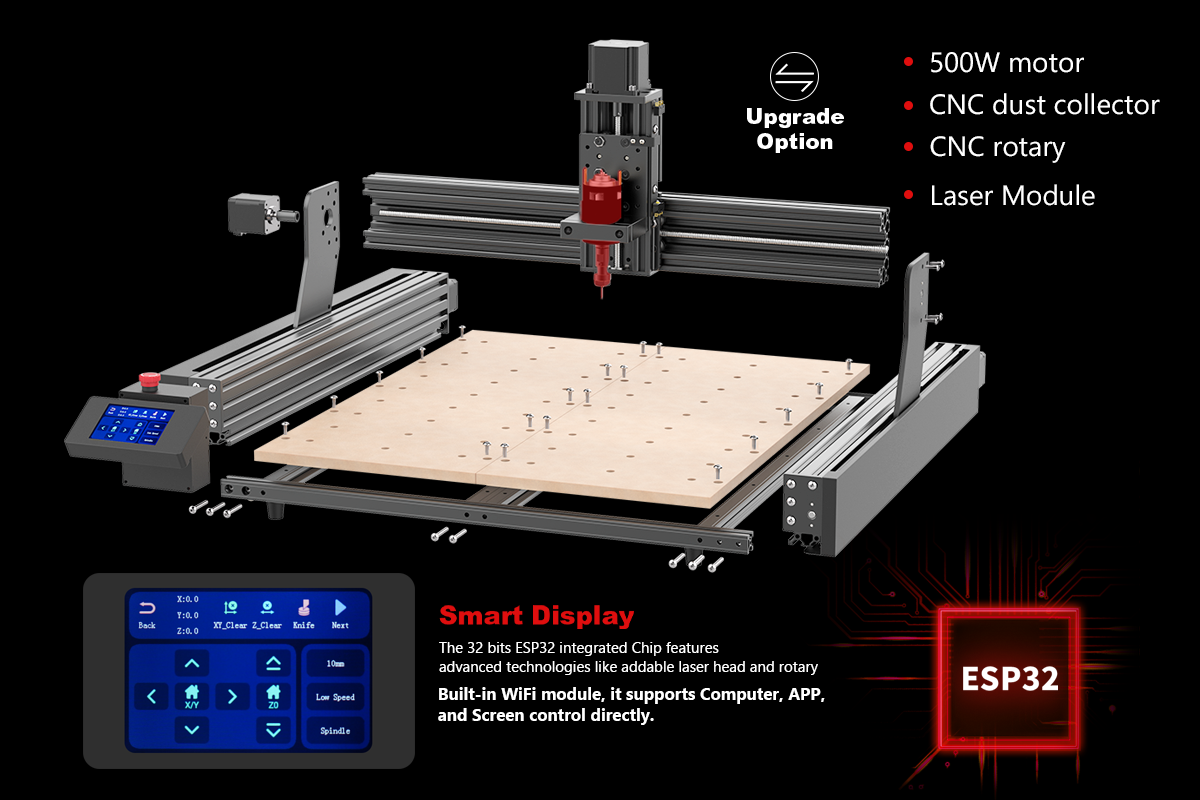

More Extension Modules
Widely used in Various Materials
Software and Support
Product Compare
Product
Twotrees TTC450 CNC Router Machine
From
R$ 1.920,00
Twotrees TTC450 PRO CNC Router Machine
From
R$ 3.130,00
Máquina de Roteamento CNC Twotrees TTC6050
From
R$ 8.244,00
Machine weight
15.45kg
15.45kg
35.9kg
Overall Power
72W
72W
150W
Spindle Speed
8000rpm
8000rpm
12000rpm
Engraving Area
460*460*80mm
460*460*80mm
600*500*100mm
Engraving Speed
800mm/Min
800mm/Min
5000mm/Min
Engraving Accuracy
100±0.05mm
100±0.05mm
100±0.05mm
Transmission Screw Models
T8 4mm Screw
T8 4mm Screw
Ball Screws + Linear Guides
Main Body Material
Metal Frame+Aluminium Profile
Aluminum + Stainless Steel
Aluminum + Injection Molded Parts
Product information
Main material
Metal Frame + Aluminium Profile
Net weight
15.45kg
Gross weight
20.6kg
Machine dimensions
782mm x 662mm x 390mm
Package dimensions
760mm x 740mm x 218mm

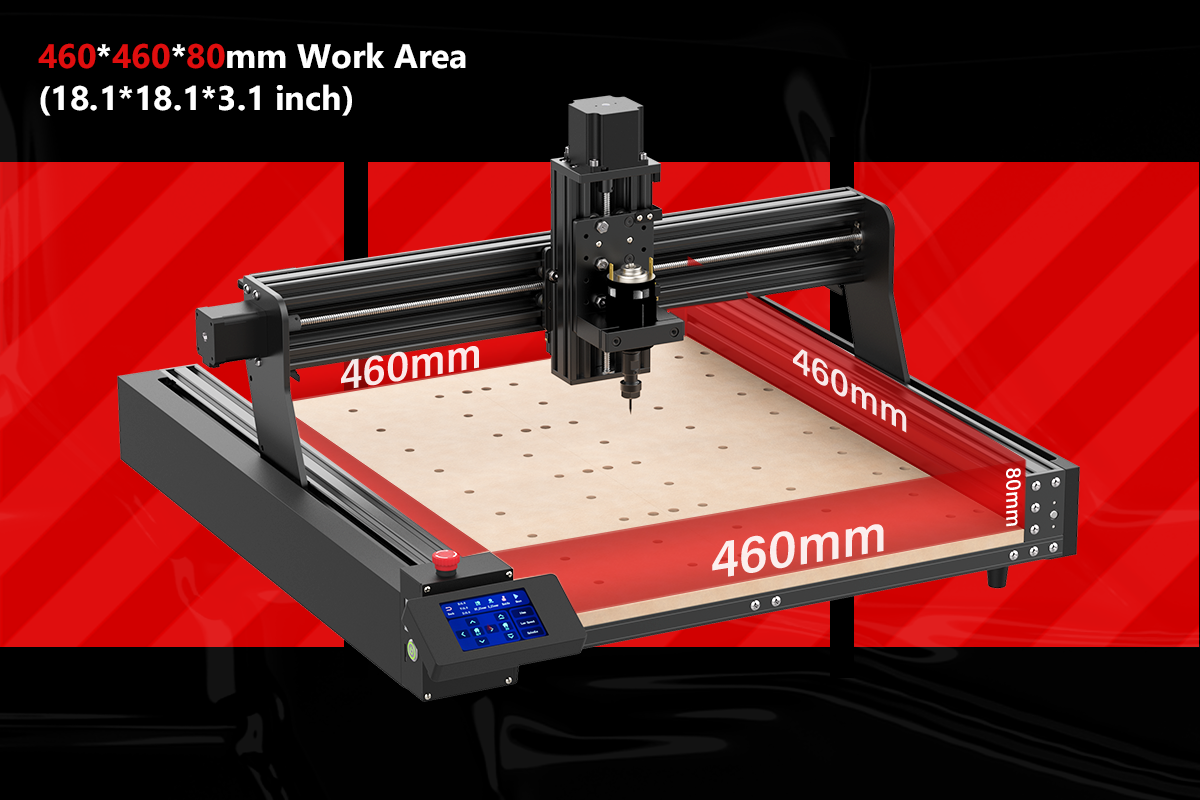

Working range
460mm x460mm x 80mm
Max speed
800mm/Min
Spindle speed
8000rpm
Running accuracy
±0.1mm

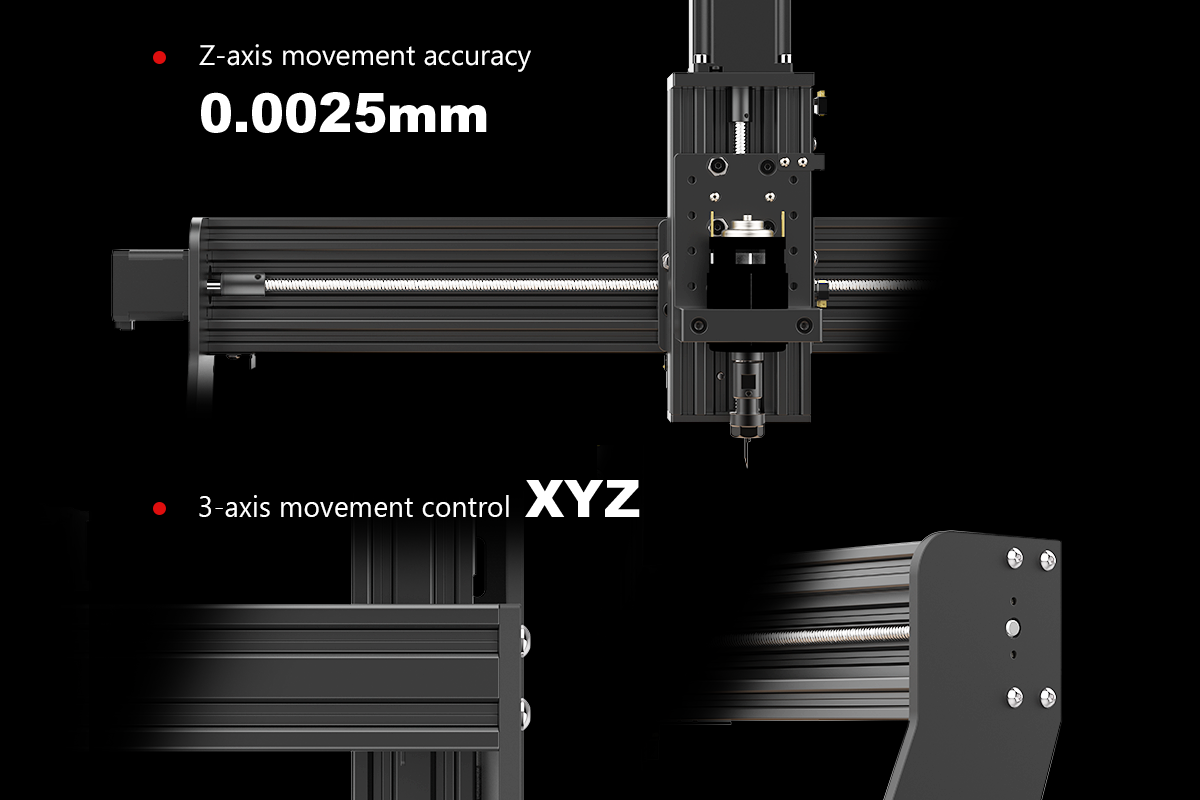

Repositioning accuracy
±0.0025mm
Power supply
120W,24V,5A
Cam software
Candle,Carveco,Easel
Homing switches
X,Y,Z double limit switch + ESTOP
Stepper motors
17HS8401S,NEMA23 20mN.m
Leadscrew size & type
T8 2mm Pitch, 4mm Lead 5 Start Acme Lead Screw
