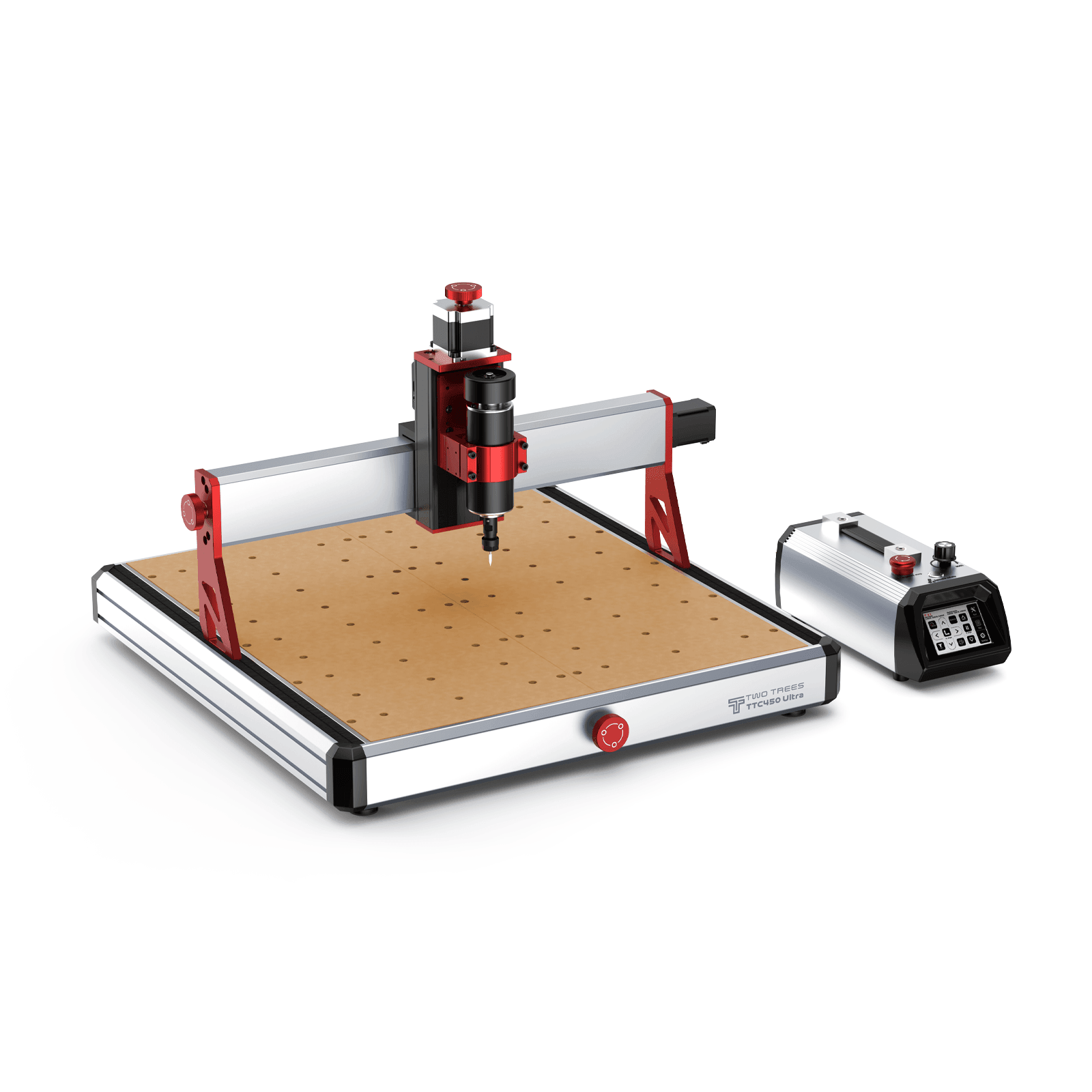

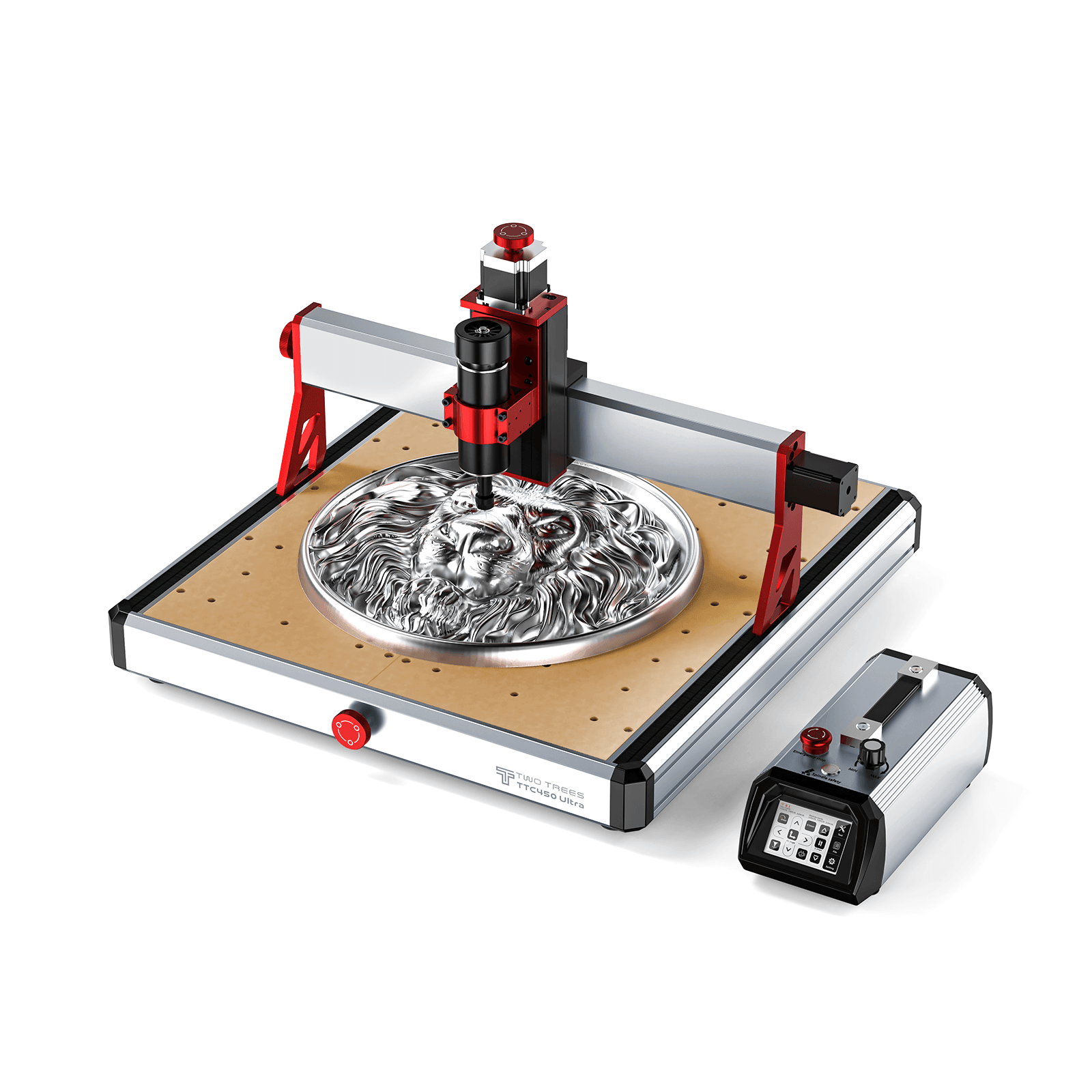

【Pré-venda】Roteador CNC Twotrees TTC450 Ultra
Preço normal
R$ 4.094,00
Preço normal
R$ 4.094,00
Preço promocional
R$ 4.094,00
Preço unitário
por
Frete calculado no checkout.
Limited Time!
Labor Day DlY Sale Save up to 59% OFF
00
d
00
h
00
m
00
s
Order TTC450 Ultra now – Ships by late September
Não foi possível carregar a disponibilidade de retirada.
Preço normal
R$ 4.094,00
Preço normal
R$ 4.094,00
Preço promocional
R$ 4.094,00
Product Video
Duplique os benefícios, maximize o valor
Nós otimizamos, nós atualizamos: o TTC450 Ultra ainda melhor
Materiais desbloqueados, criatividade sem limites
Metal
Acrílico
Madeira
Couro
Alumínio
Pedra
Bambu
Aço inoxidável
Fibra de carbono
PCB
Ferramentas perfeitas para uma vida melhor em todos os aspectos
-
Customized Furniture
Create a Warm Home Environment by Yourself according to Actual Needs and Save Purchase Costs.
-
Deep-engraveJewelry
Engrave Personalized Patterns and Letters of Special Meaning on Jewelry to Create Unique Jewelry.
-
Powerful Tool
lmprove the Work Efficiency of Craftsmen and Accelerate the Realization of Creativity.
-
Toys Free
Create Educational Toys for Your Children by Yourself to Strengthen the Parent-child Relationship.
-
Featured Elements
Create 0utdoor Work Signs with Environmental Characteristics to Add Fun.
-
Gardening Assistant
Create a Variety of Gardening Tools to lmprove Gardening Efficiency.
Diverse Accessories Simplify Creations
Optional Upgrades Available
TTC450 Ultra
Metal e madeira são tudo em um
Creative Video

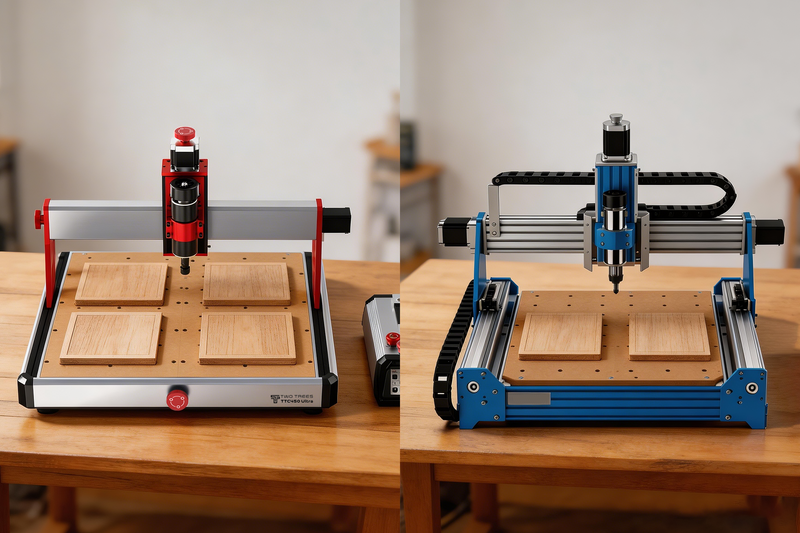

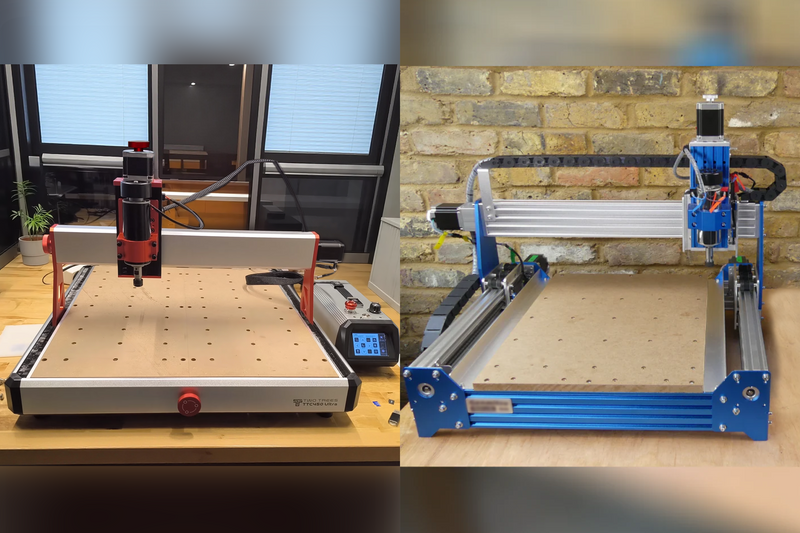

Product Compare
Product

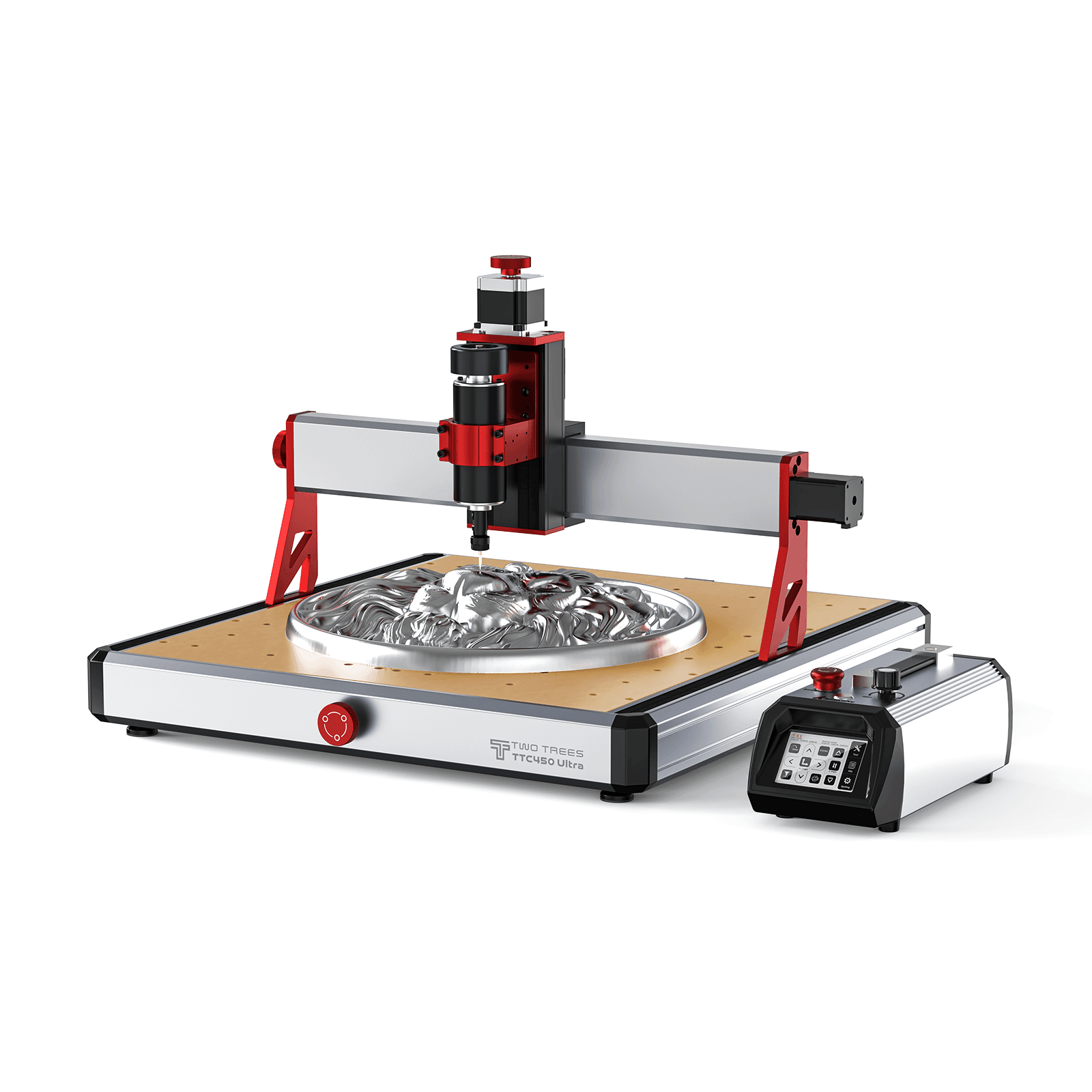

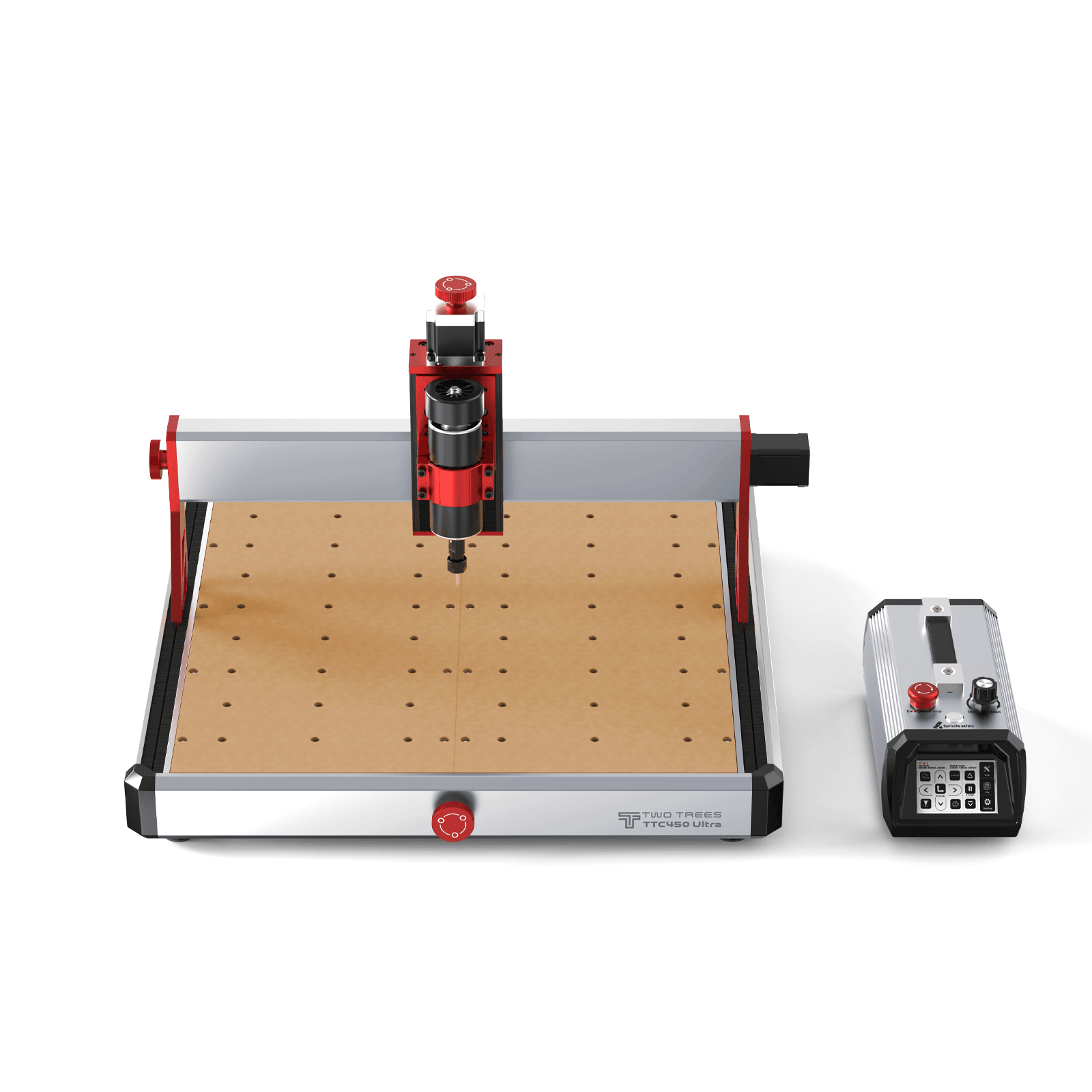

Twotrees TTC450 Ultra CNC Router Machine
From
R$ 4.094,00
Twotrees TTC-H40 CNC Router Machine
From
R$ 8.304,00

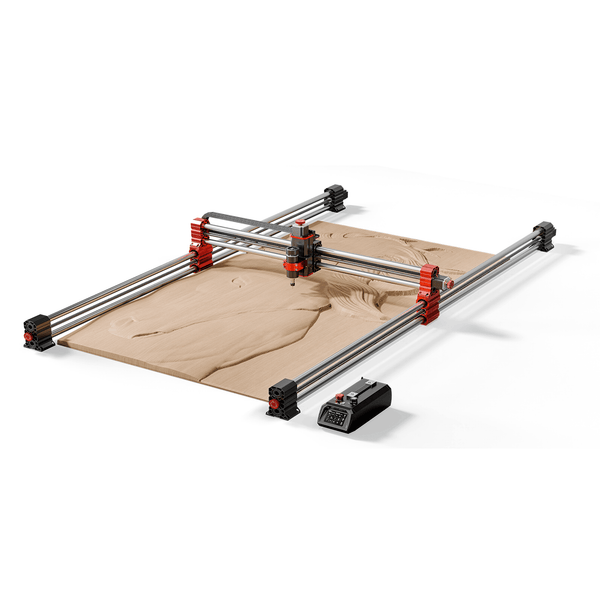

Twotrees TTC-H80 CNC Router Machine
From
R$ 2.299,00

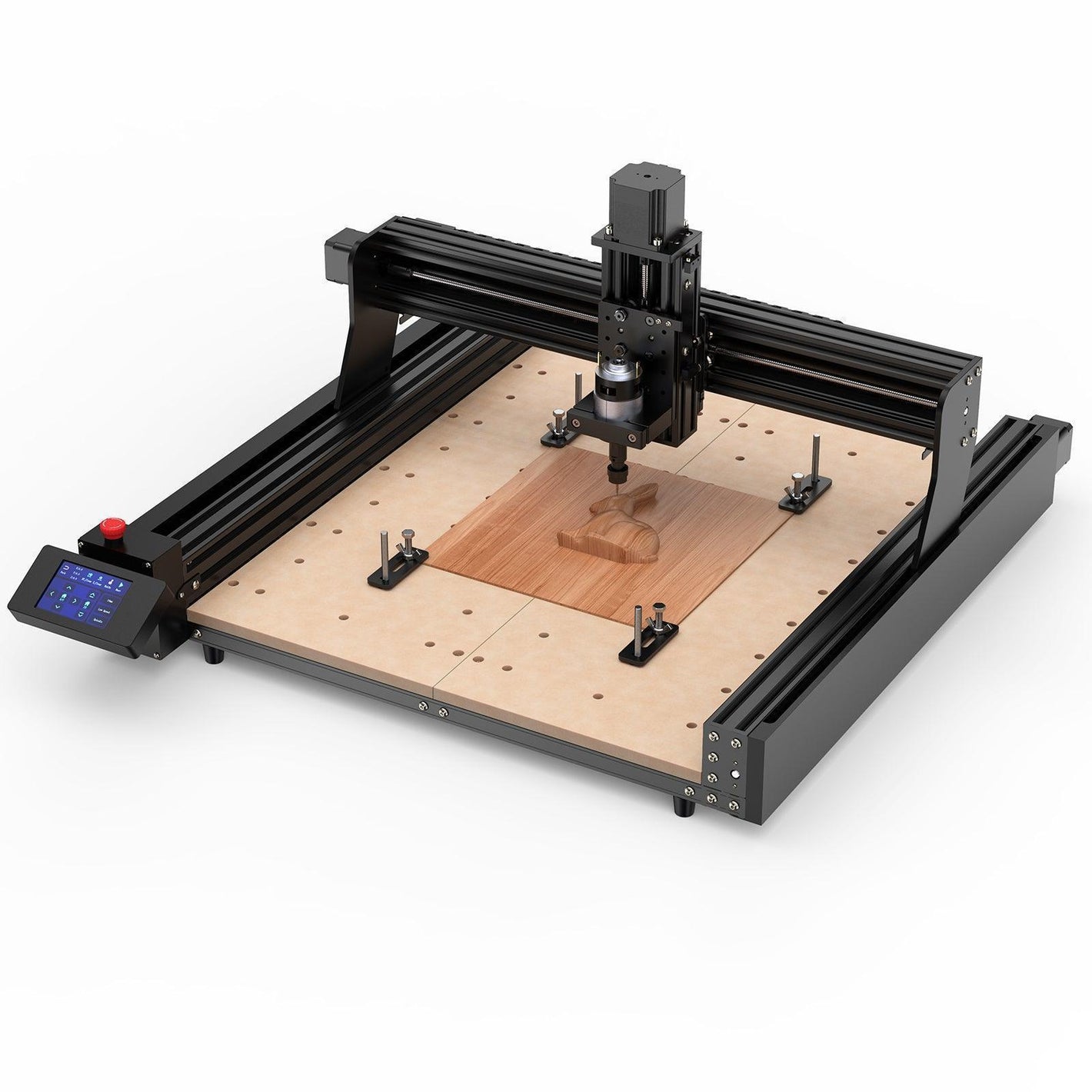

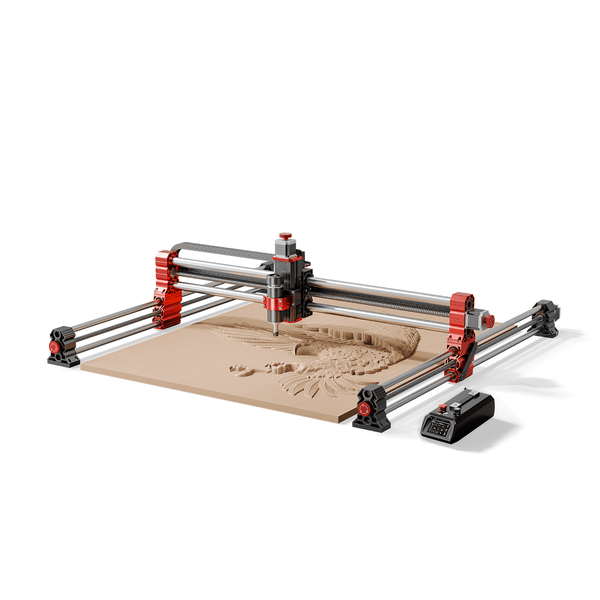

Máquina de Roteamento CNC Twotrees TTC6050
From
R$ 8.304,00
Machine weight
19kg
38.3kg
68.2kg
35.9kg
Overall Power
160W
150W
160W
150W
Spindle Speed
12000rpm
12000rpm
12000rpm
12000rpm
Engraving Area
460*460*100mm
1000*1000*100mm
1000*2000*100mm
600*500*100mm
Engraving Speed
800mm/Min
1800mm/Min
1800mm/Min
5000mm/Min
Engraving Accuracy
100±0.05mm
100±0.05mm
100±0.05mm
100±0.05mm

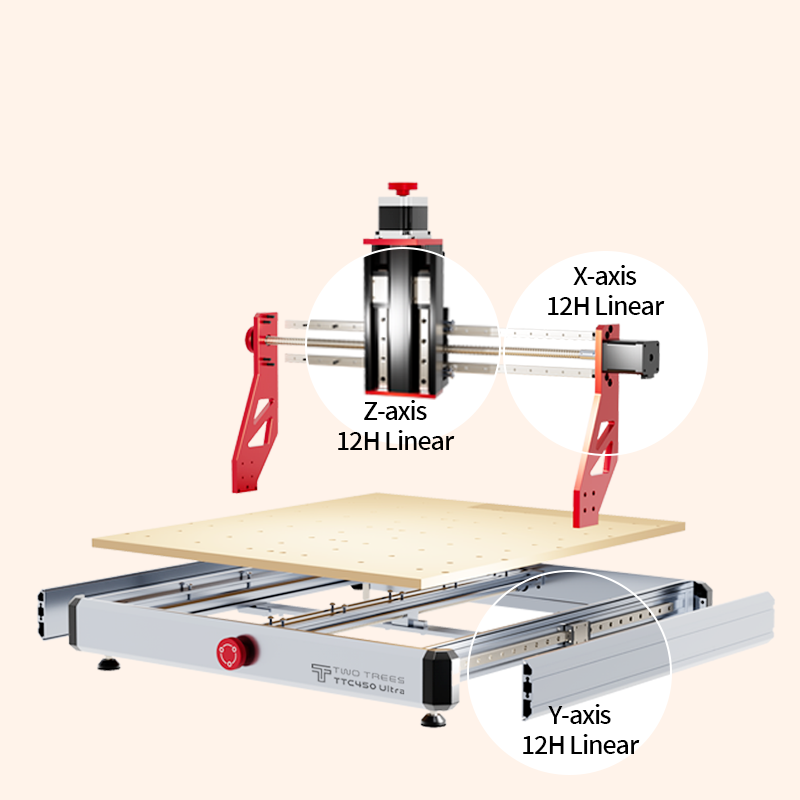

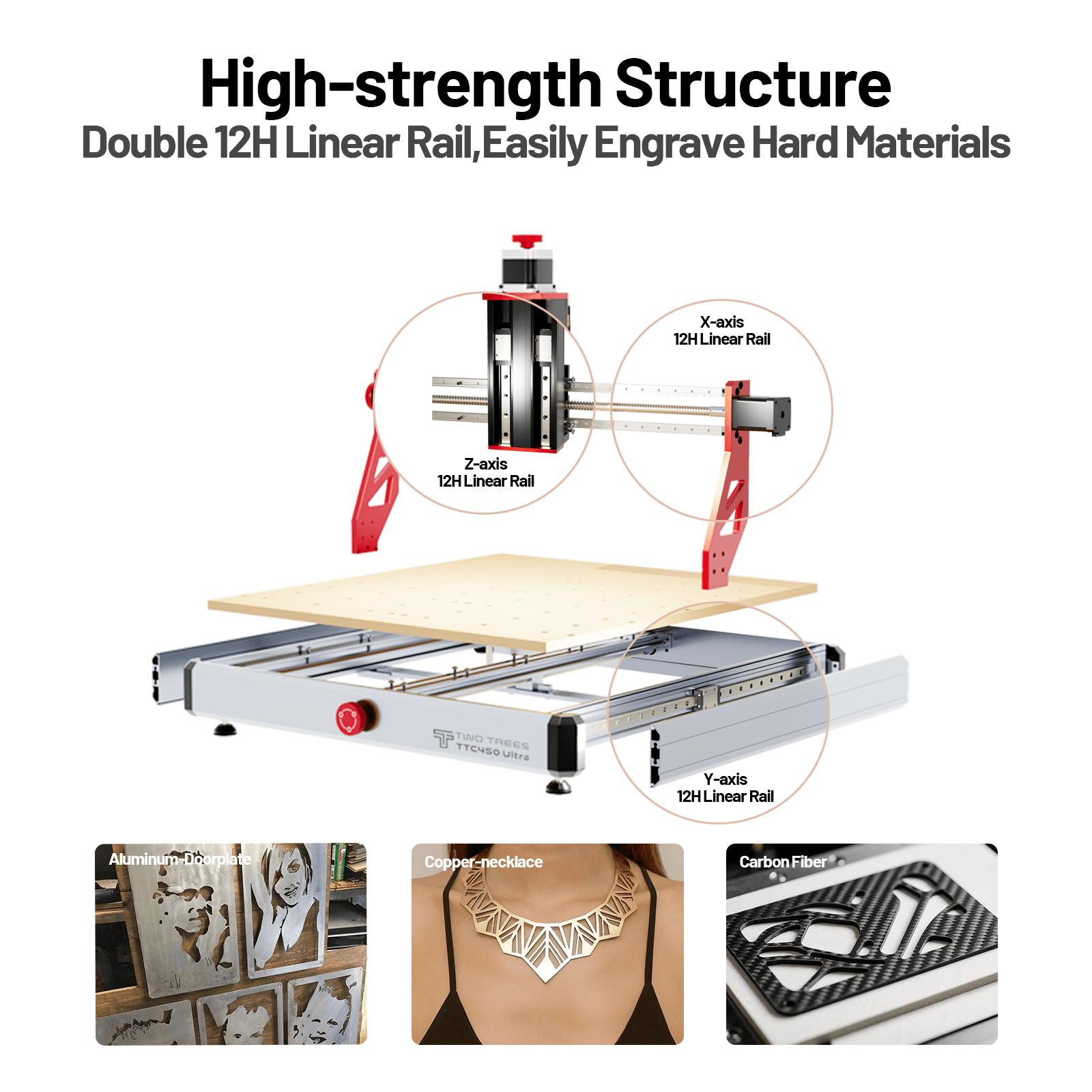

Transmission Screw Models
T8 4mm Screw
XY-axis Trapezoidal Screws
XY-axis Trapezoidal Screws
Ball Screws + Linear Guides
Main Body Material
Aluminum + Stainless Steel + Injection Molding
Aluminum+Optical Axis
Aluminum+Optical Axis
Aluminum + Injection Molded Parts
Product
Specifications
Main material
Aluminum + Stainless Steel + Injection Molding
Net weight
19kg
Control box dimensions
300mm x 137mm x 131mm (11.81in x 5.39in x 5.16in)
Machine dimensions
745mm x 660mm x 473mm (29.33in x 25.98in x 18.62in)

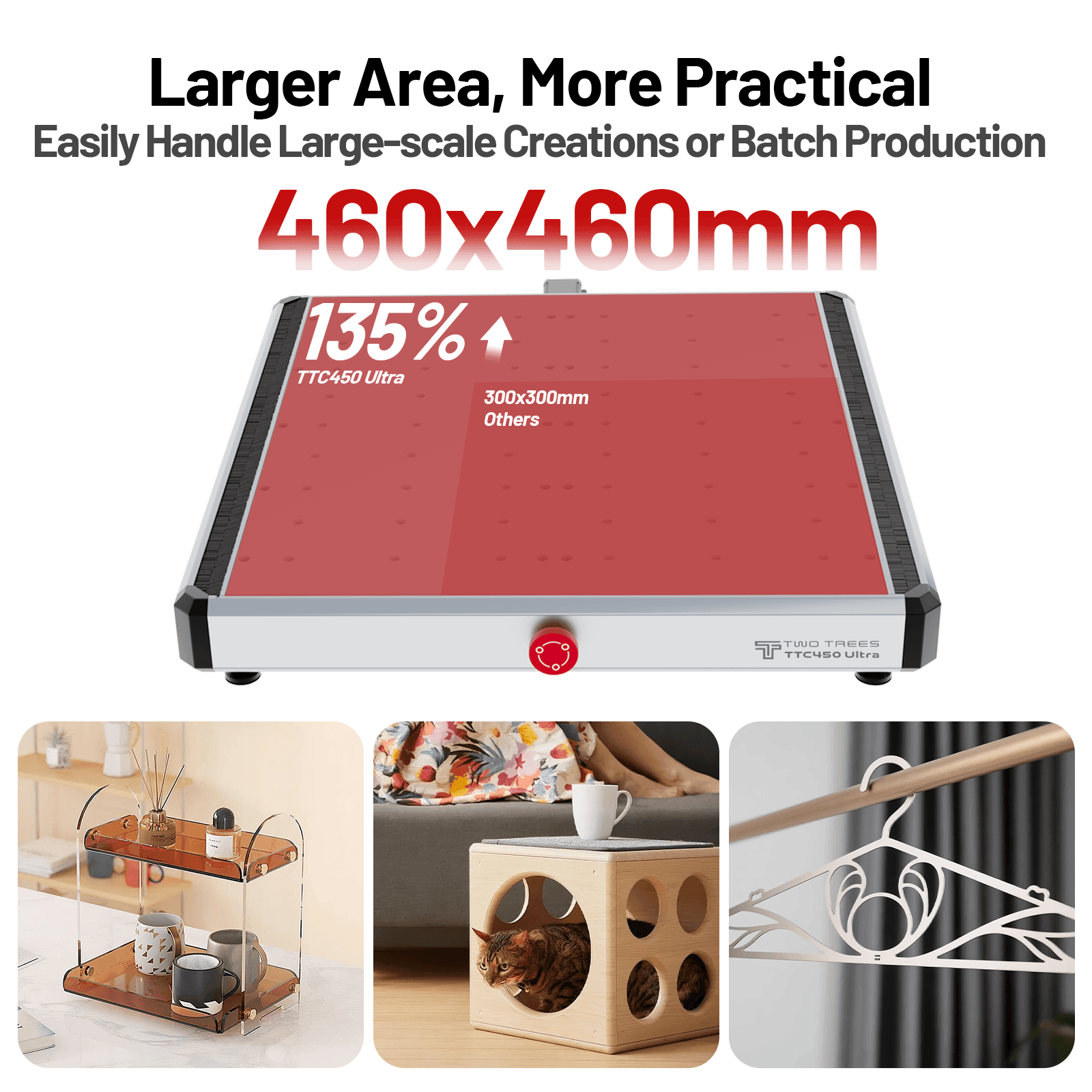

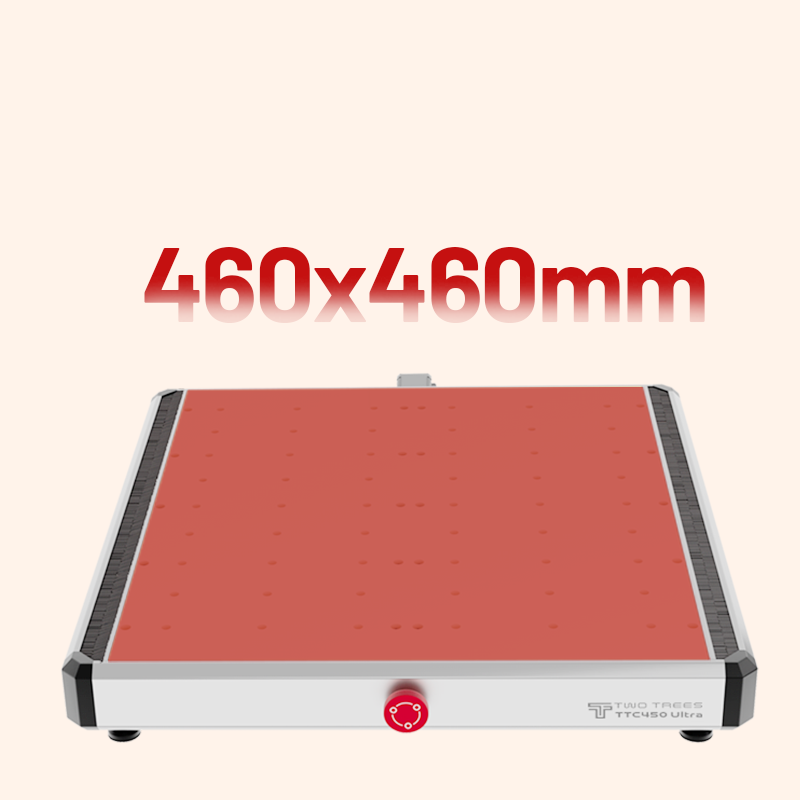

Working range
460mm x 460mm x 100mm (18.11in x 18.11in x 3.94in)
Supported tool diameter
0.5mm to 7mm (ER11 Collet)
Compatible engraving materials
Plywood, MDF, Solid Wood, Acrylic, Carbon Fiber, Aluminum, Copper, Stainless Steel
Packaging dimensions
685x610x190mm
Power supply
216W dual-channel switching power supply
Control board input voltage
24V
Maximum power consumption
80W
Standby power consumption
12.6W

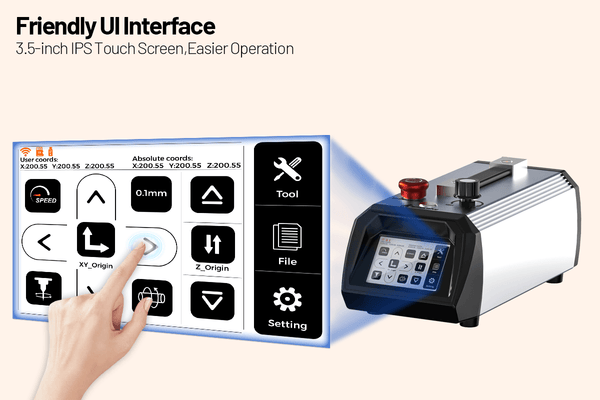

Touch screen
3.5-inch IPS capacitive touch color screen (480*320 resolution)
Firmware type

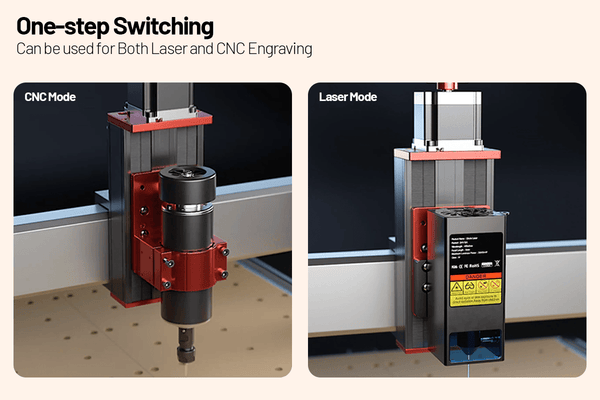

GRBL open source, supports both CNC and laser (no firmware flash required)
Motion structure type
XYZ
X/y axis positioning accuracy
0.01mm
Z axis positioning accuracy
0.0025mm

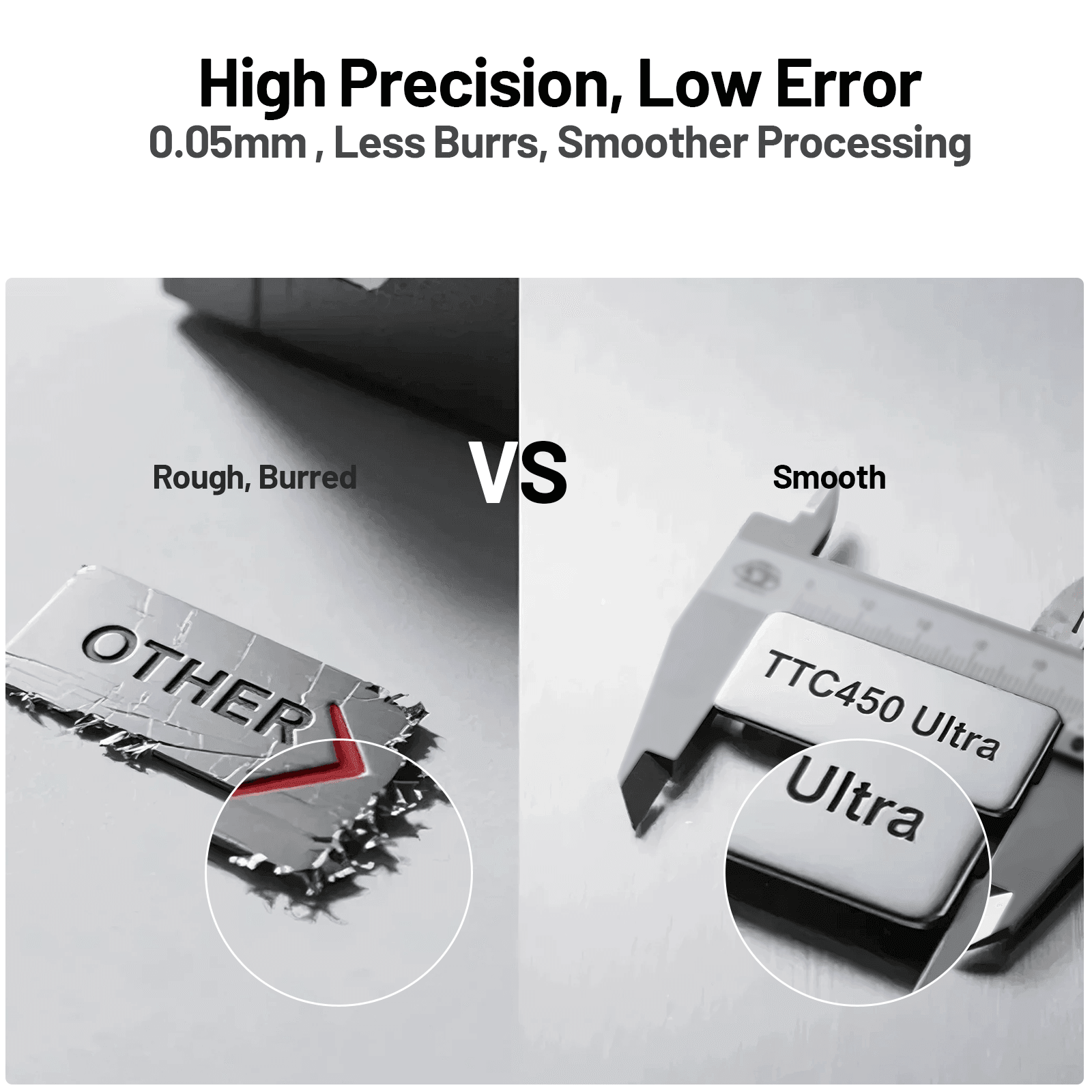

Engraving accuracy
100±0.05mm
Maximum engraving speed
3000mm/min
Maximum acceleration
500mm/s²

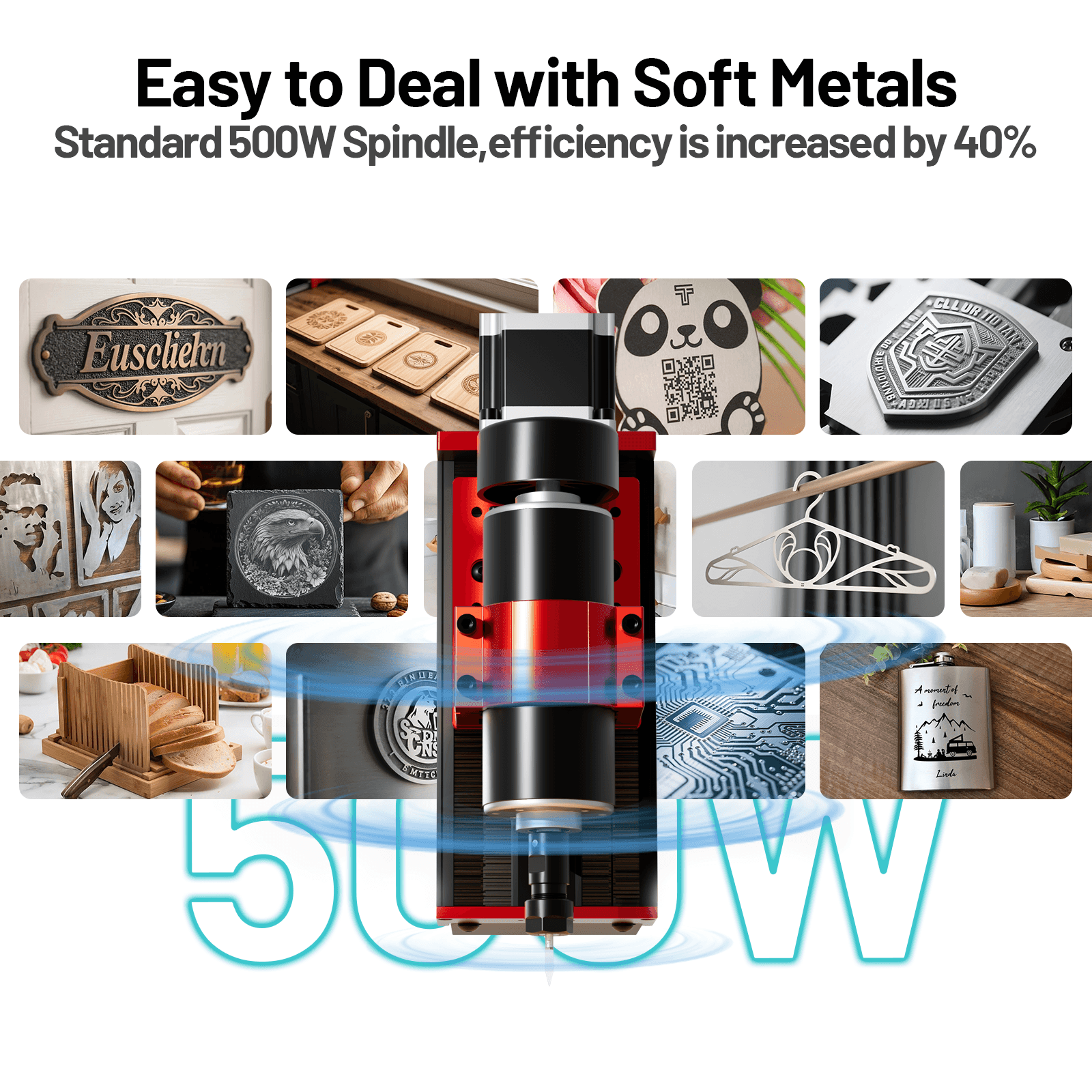

Spindle motor
500W (standard)
Spindle speed
8000-30000 RPM depending on installation
Tool size
Supports tools with diameters from 0.5mm to 7mm, depending on the inner bore of the ER11 collet
Engraving layer height
0.1mm-20mm for non-metals 0.1mm-0.2mm for metals
Programming software
VCarve, Fusion360, EASEL, Carveco Maker, FlatCAM,Camlab, Millmage, Carbide3D, and all Vectric software.
Supported systems
macOS, Windows, and Linux
Software languages
Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, and Turkish
Supported program formats
.nc and .Gcode
Safety certifications
CE-EMC/CE-LVD/CE-MD/CE-RED/ROHS/FCC-Sdoc/FCC-ID
Optimal engraving temperature
0° to 40°C
