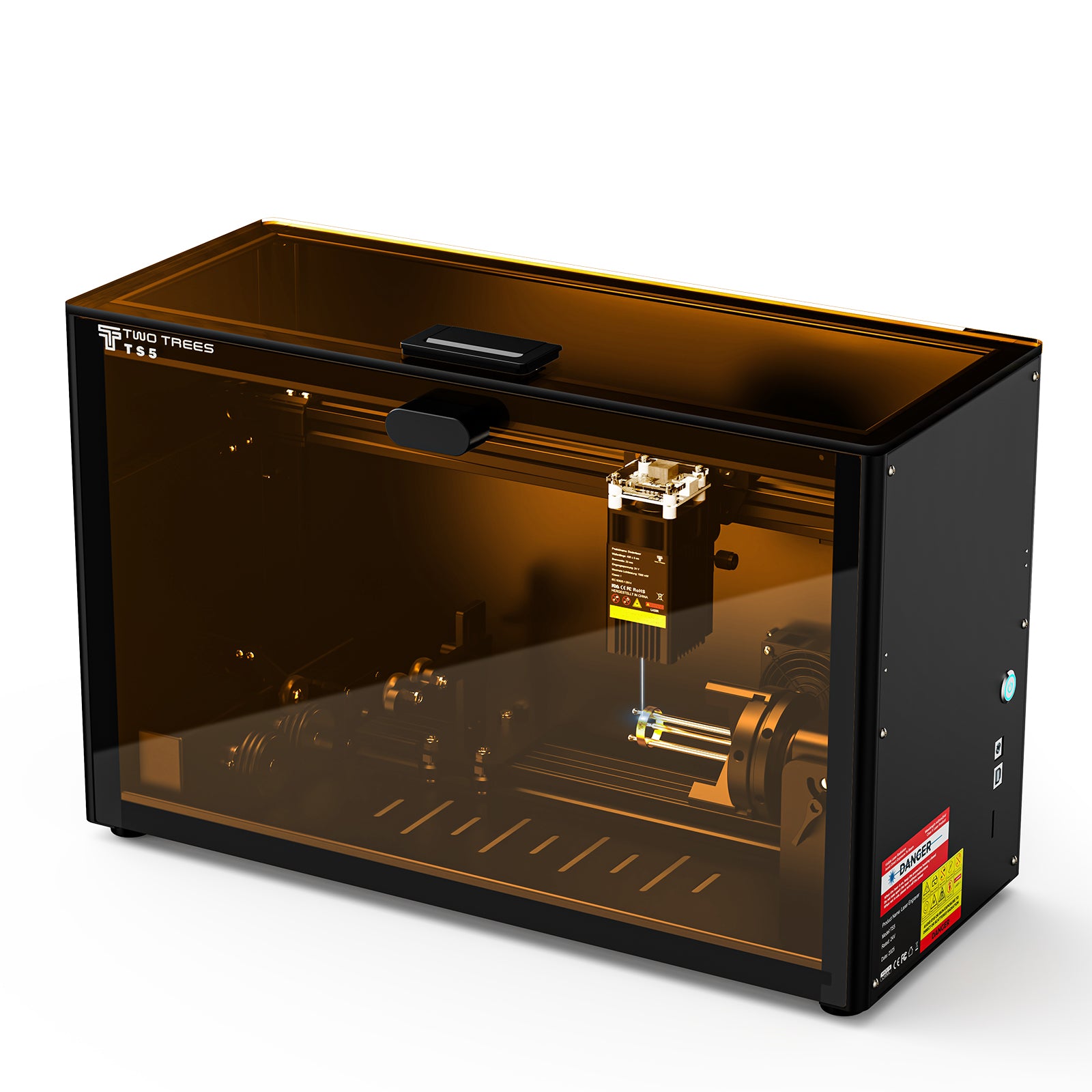

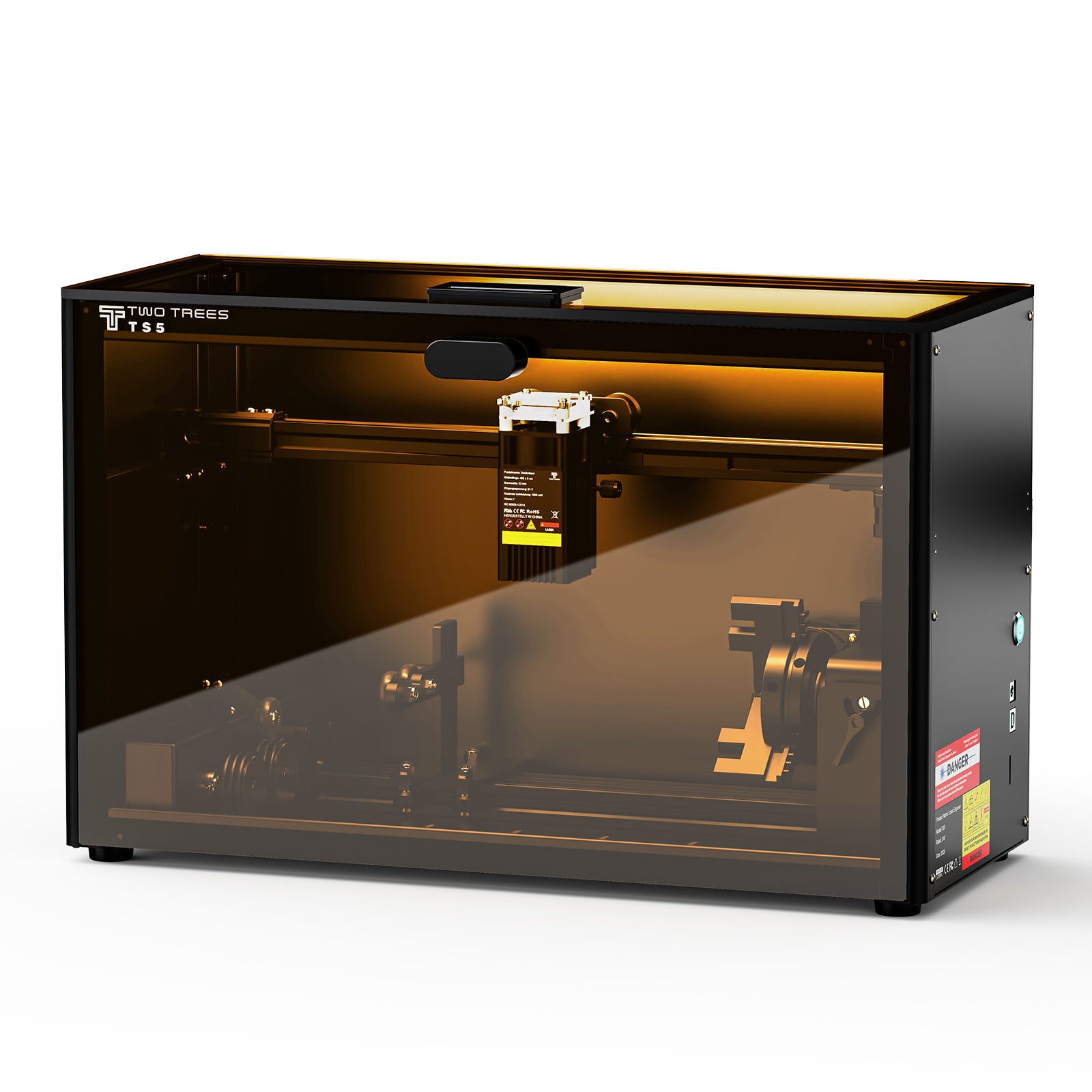

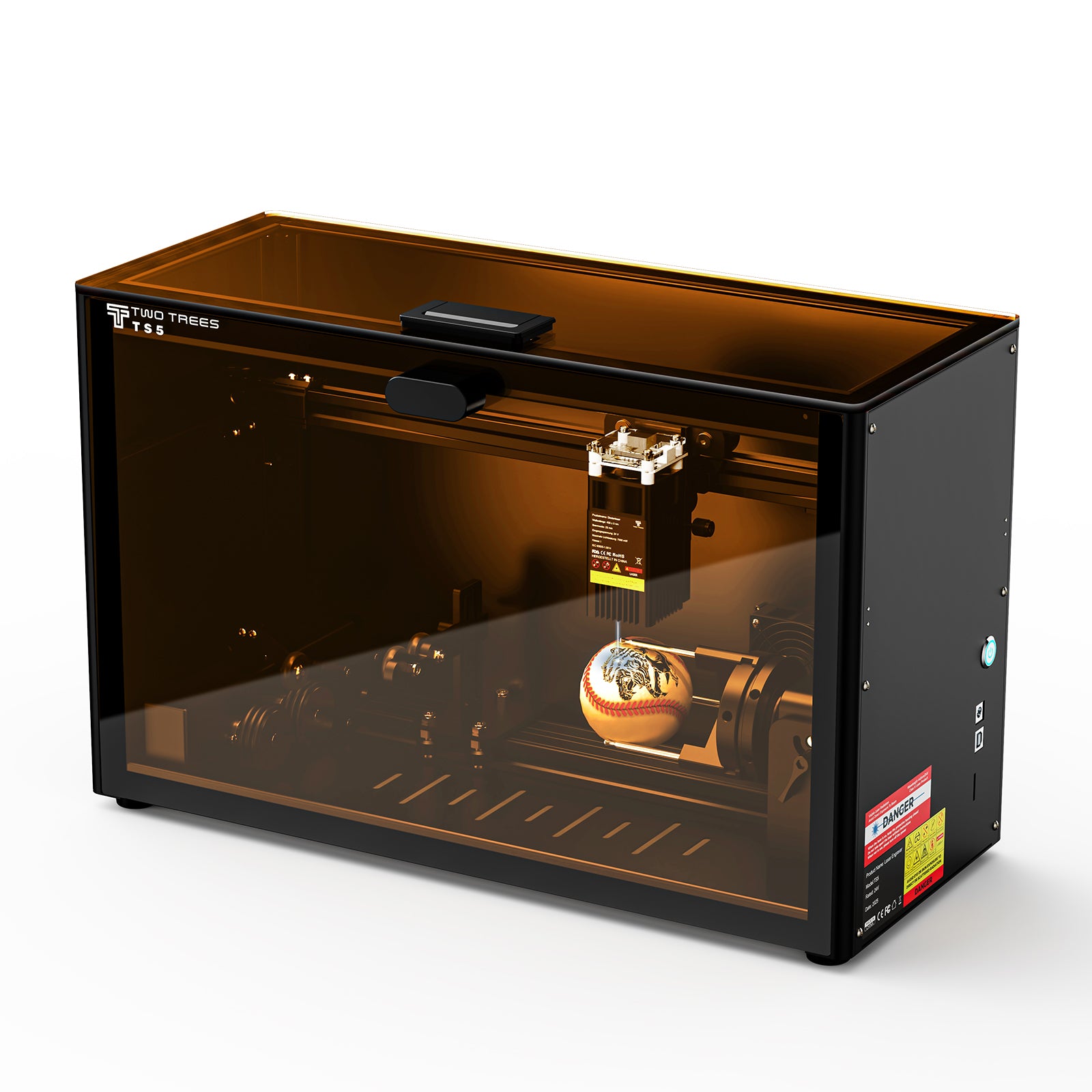

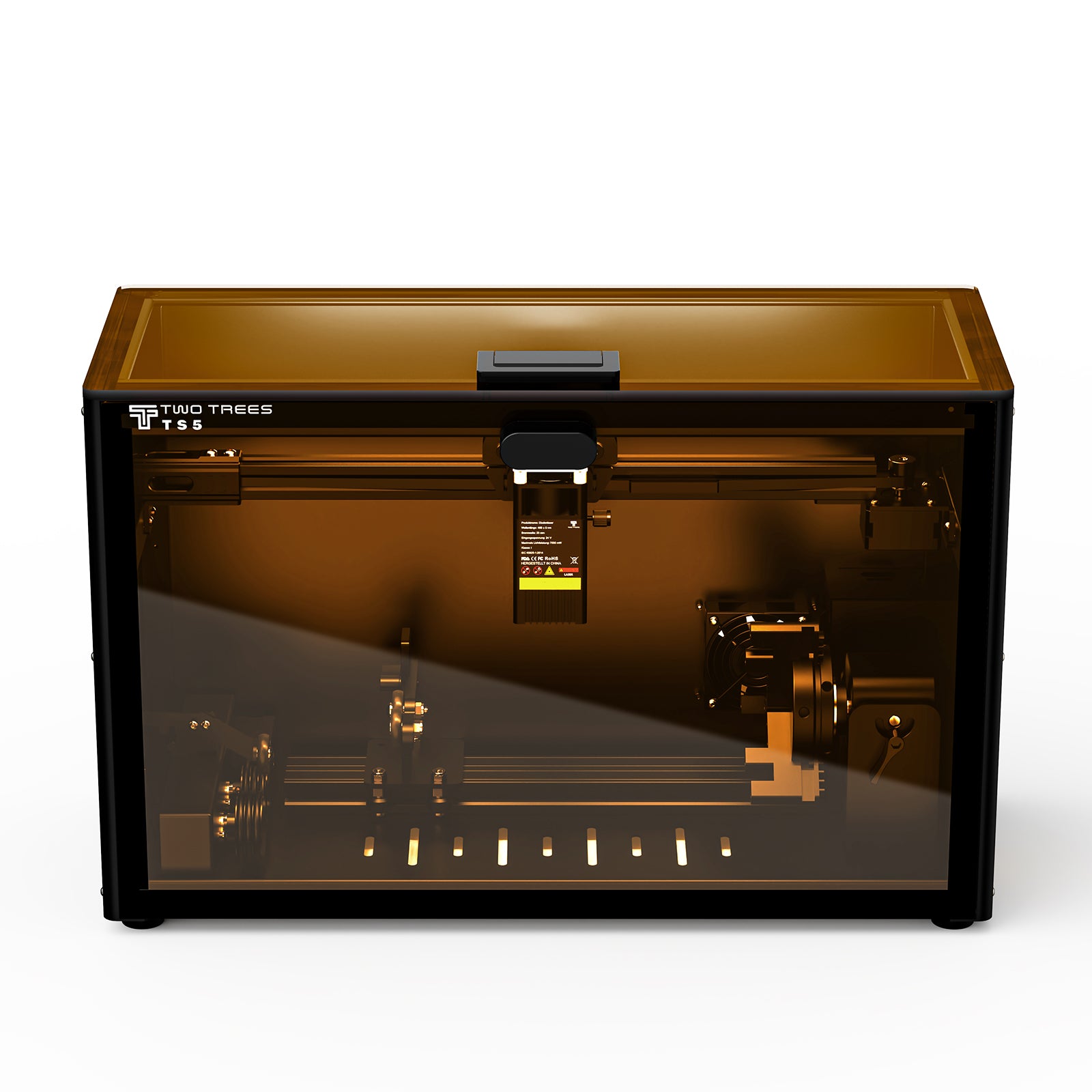

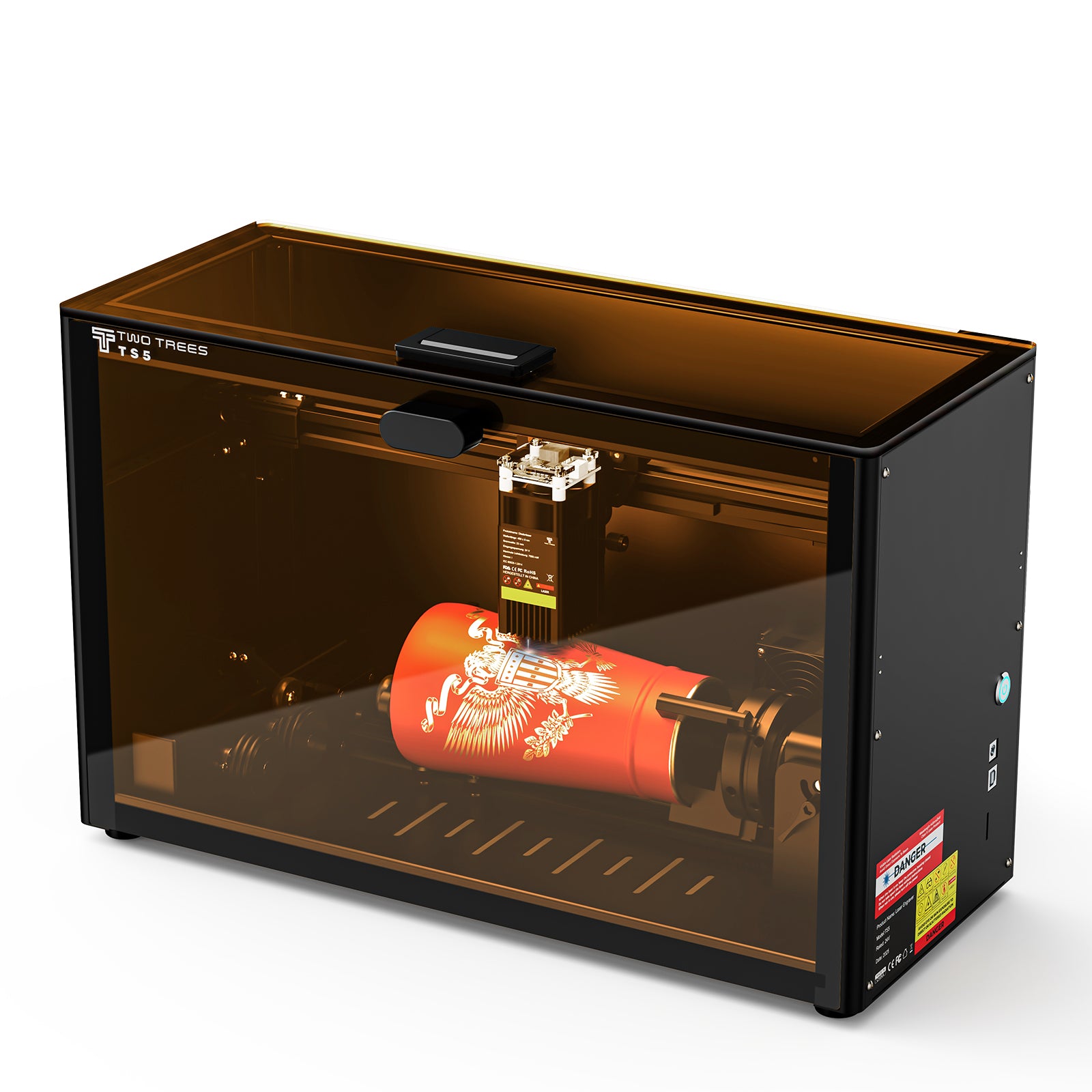

Gravador a laser Twotrees TS5-7W

R$ 2.599,00
R$ 2.599,00
Frete calculado no checkout.
Payment and Discount Info

Limited Time!

Labor Day DlY Sale Save up to 59% OFF

00 d
00 h
00 m
00 s
limited time offer
Tipo de plugue: UE
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Twotrees StoreMáquina de Roteamento CNC Twotrees TTC450 PRO + Motor de 500 W + Aspirador de Pó + Fresas de Topo
Twotrees TTC450 PRO CNC Router Machine + 500W Motor + Vacuum Cleaner +End Mills - TwoTrees Official Shop
Twotrees TTC450 PRO CNC Router Machine + TC20 Laser Module + 500W Motor + 4th Axis Module + Vacuum Cleaner +End Mills - TwoTrees Official Shop
Twotrees StoreMáquina de Roteamento CNC Twotrees TTC450 PRO + Módulo Laser TC20 + Motor de 500 W + Módulo de 4º Eixo + Aspirador de Pó + Fresas de Topo
R$ 2.599,00
R$ 2.599,00

Recursos que fazem o TS5 se destacar

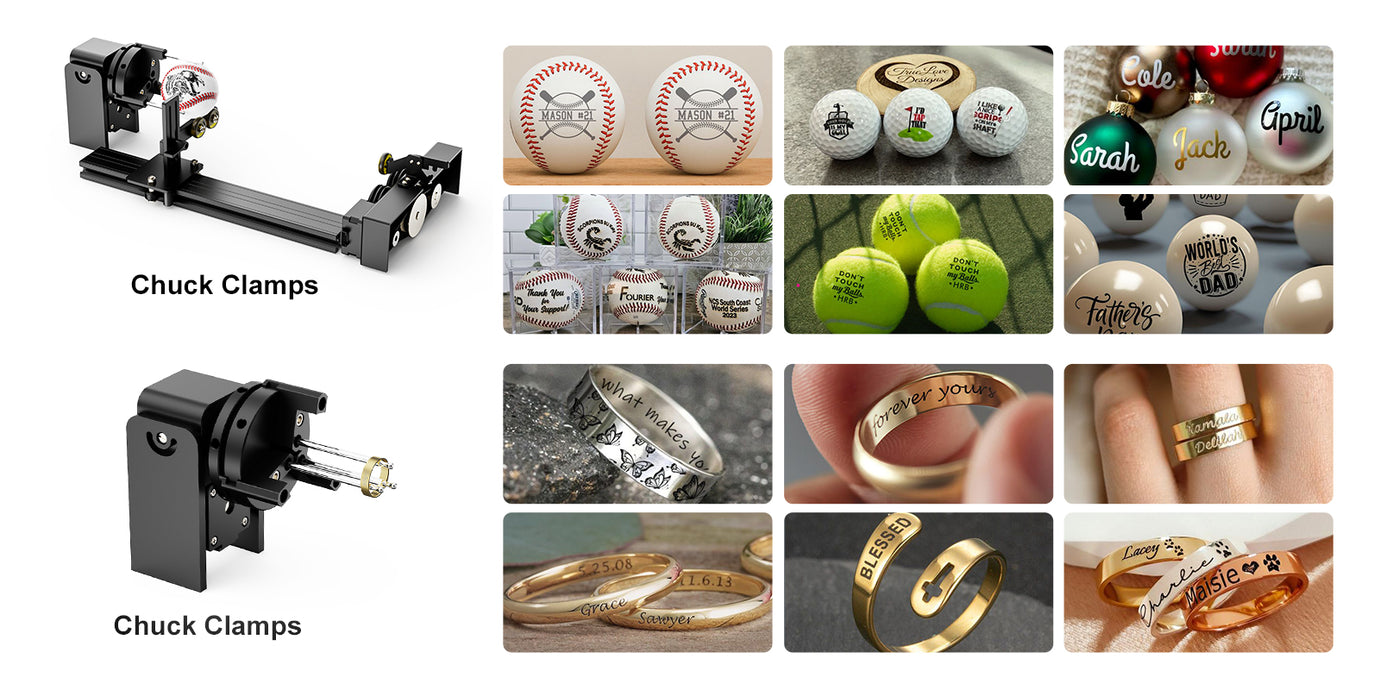

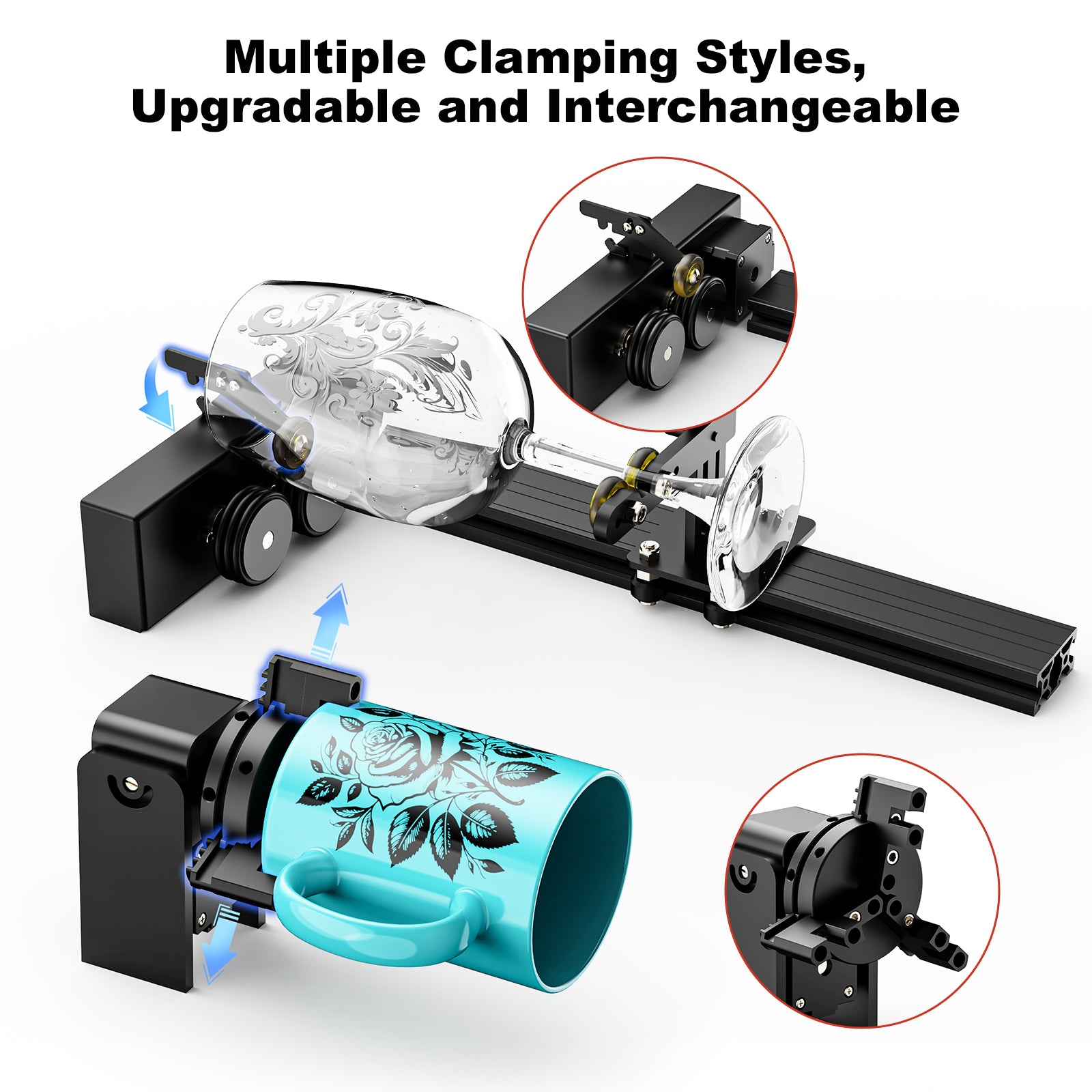

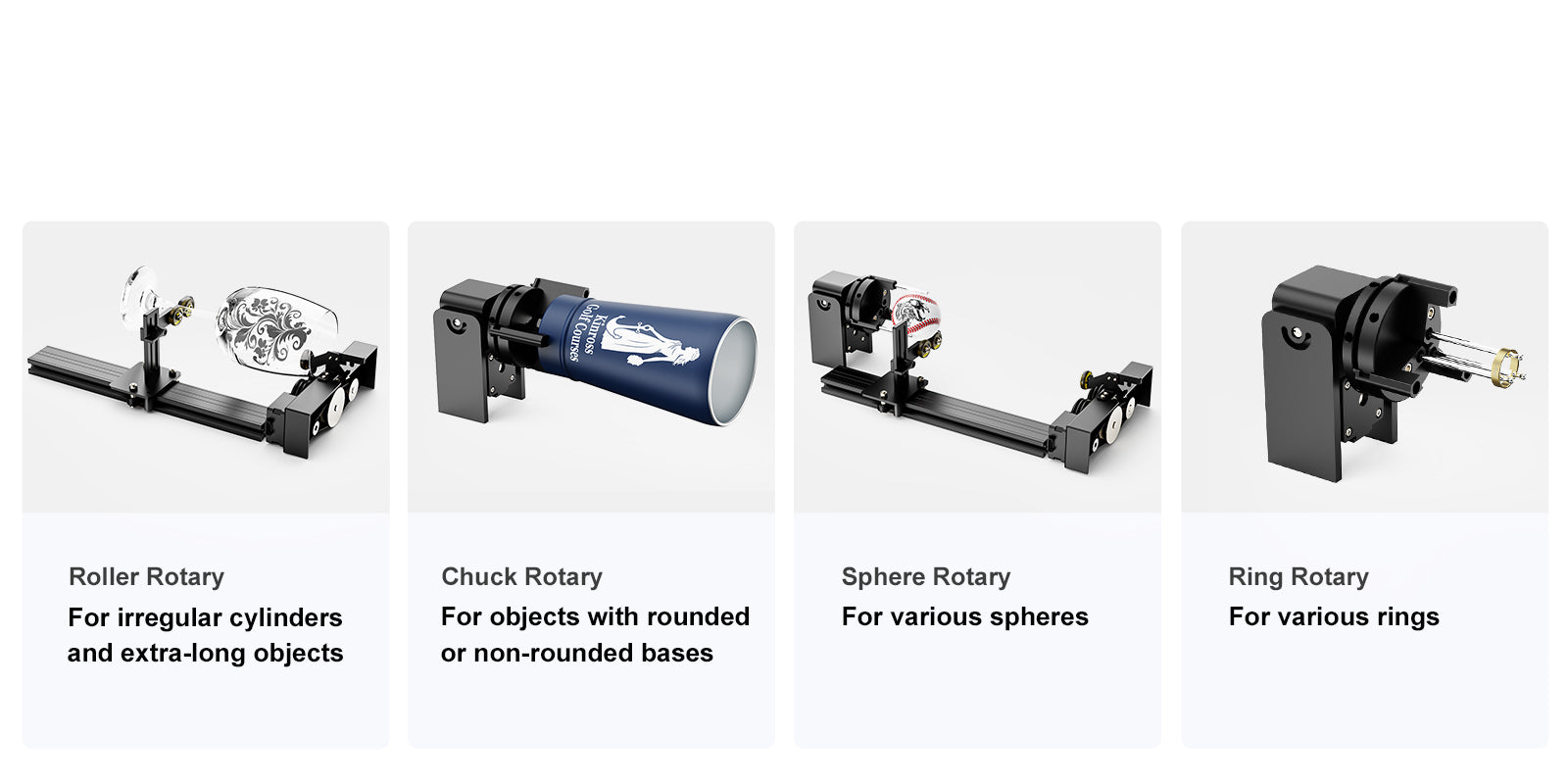

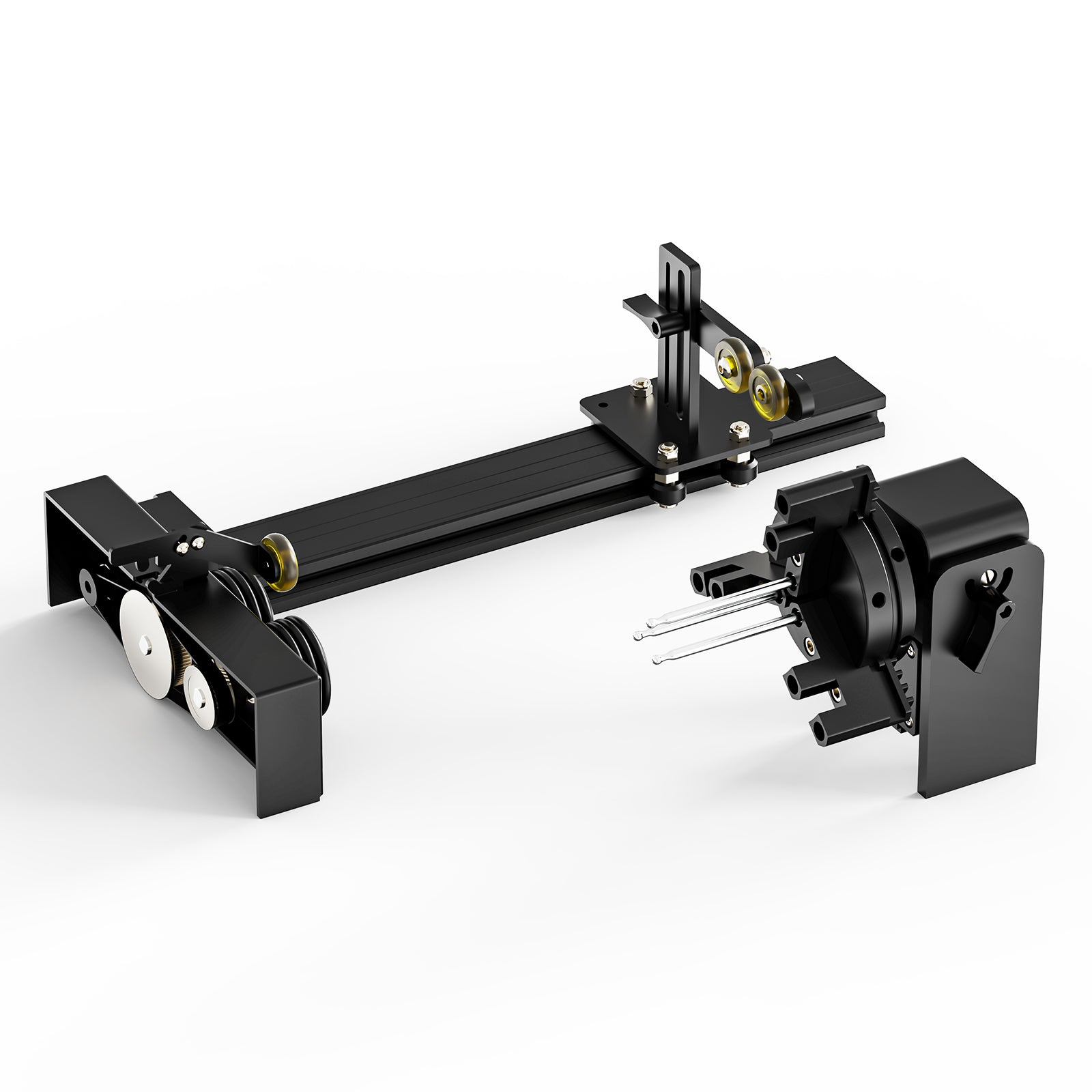

Vários estilos de fixação, atualizáveis e intercambiáveis

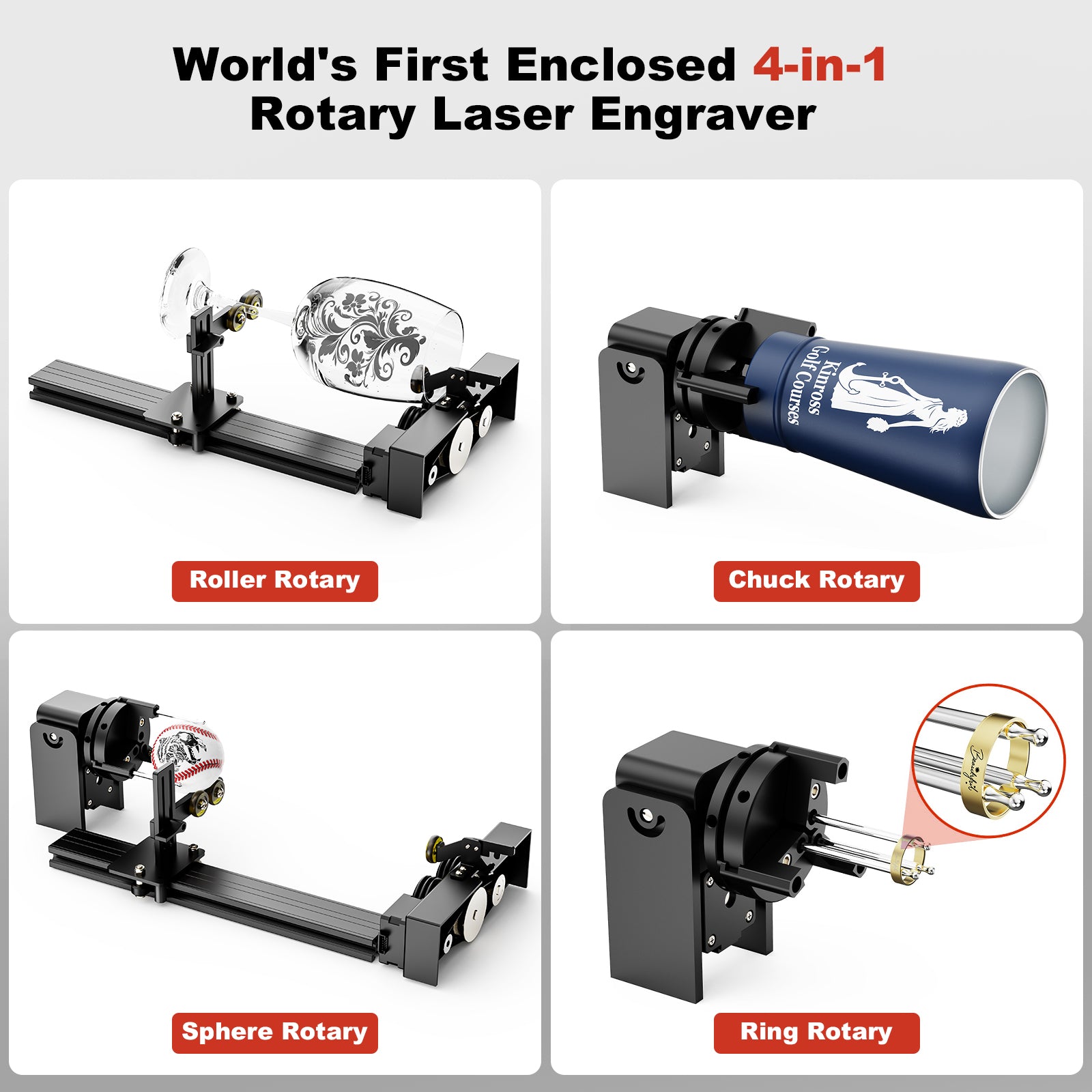

Criatividade Máxima e Revolucionária

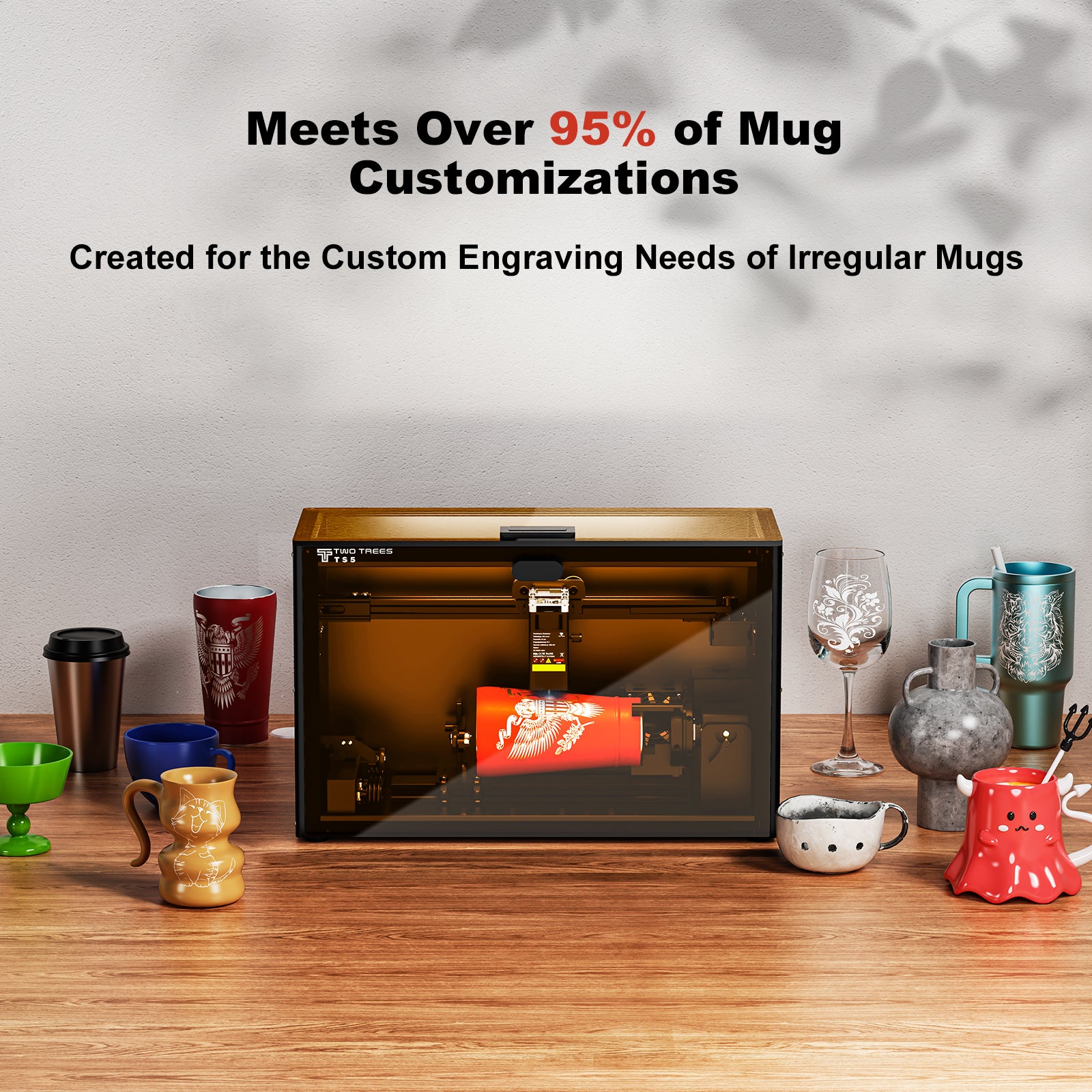

Solucione 99% dos problemas de gravação de canecas do mercado

Discover What's New

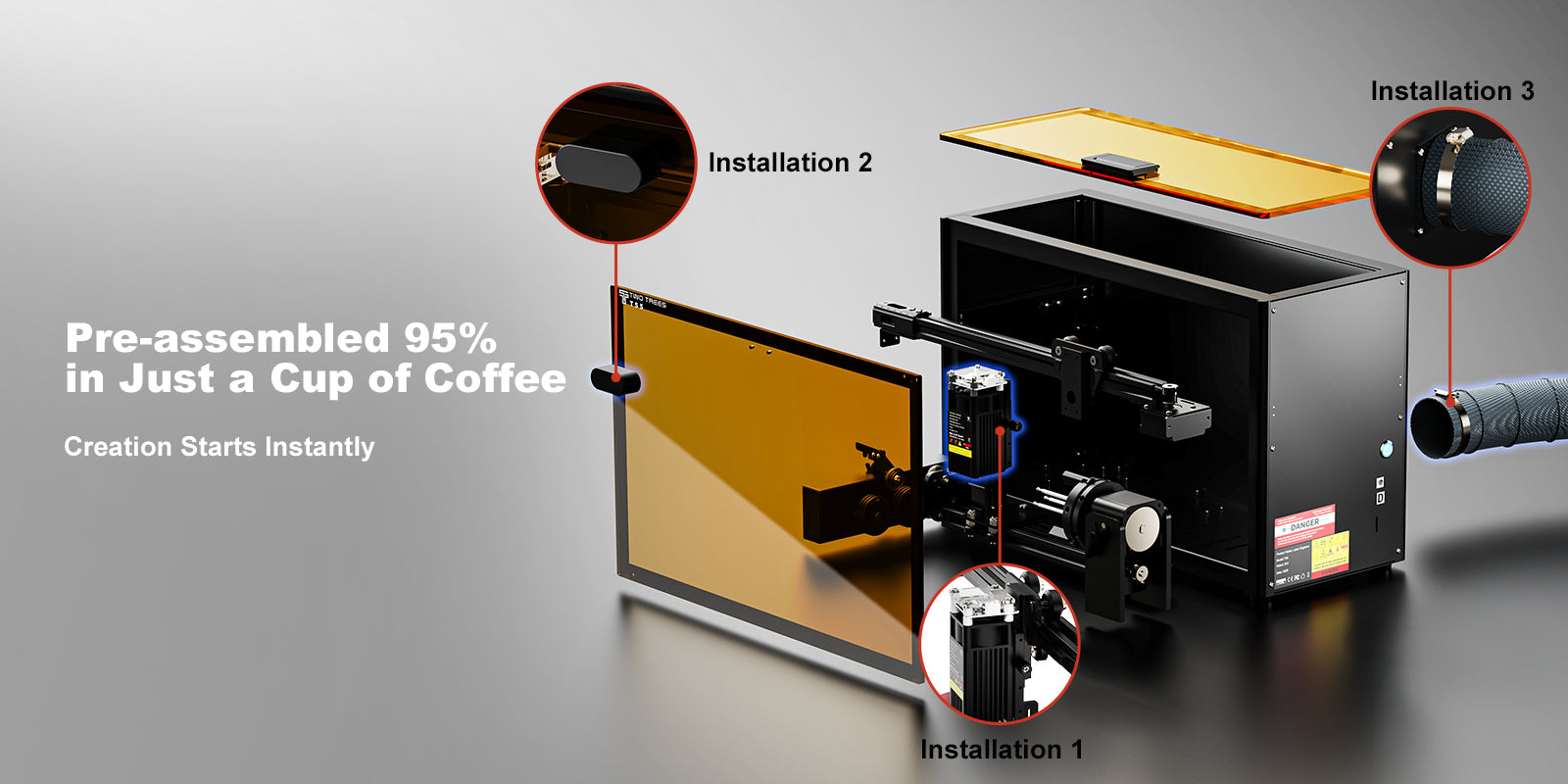

Pre-assembled 95%

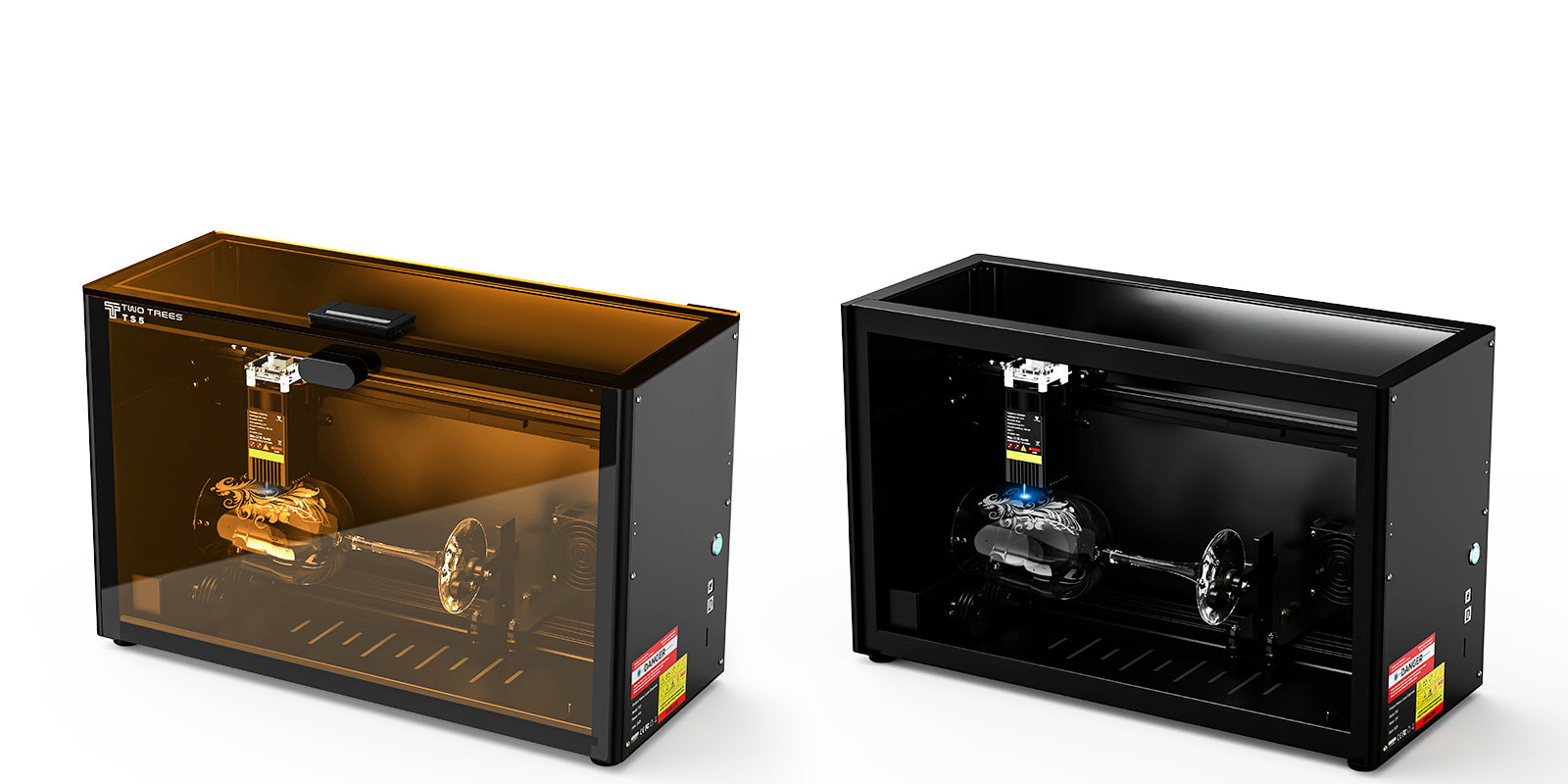

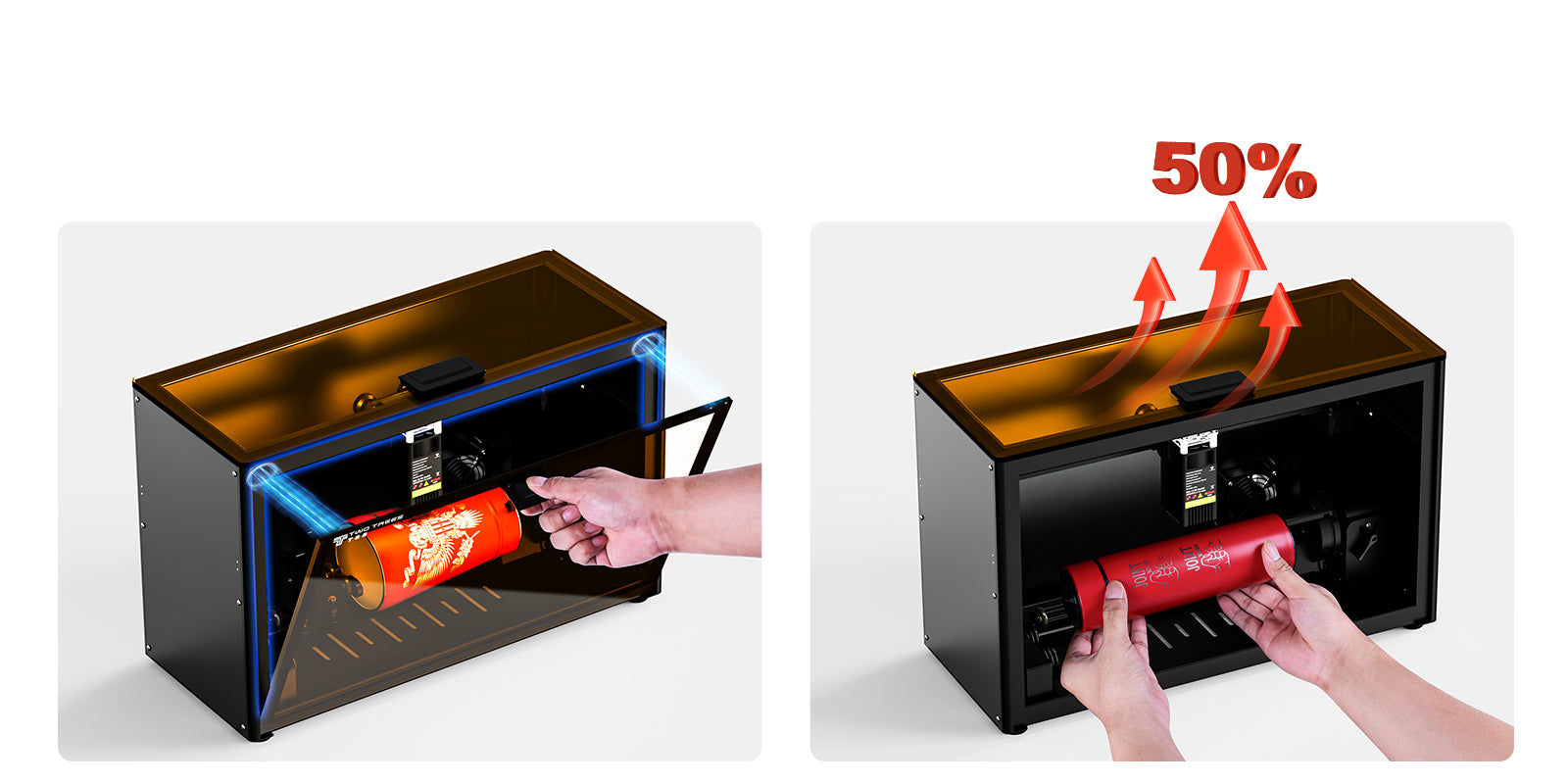

Magnetic Closure Design

Safety and Eye Protection

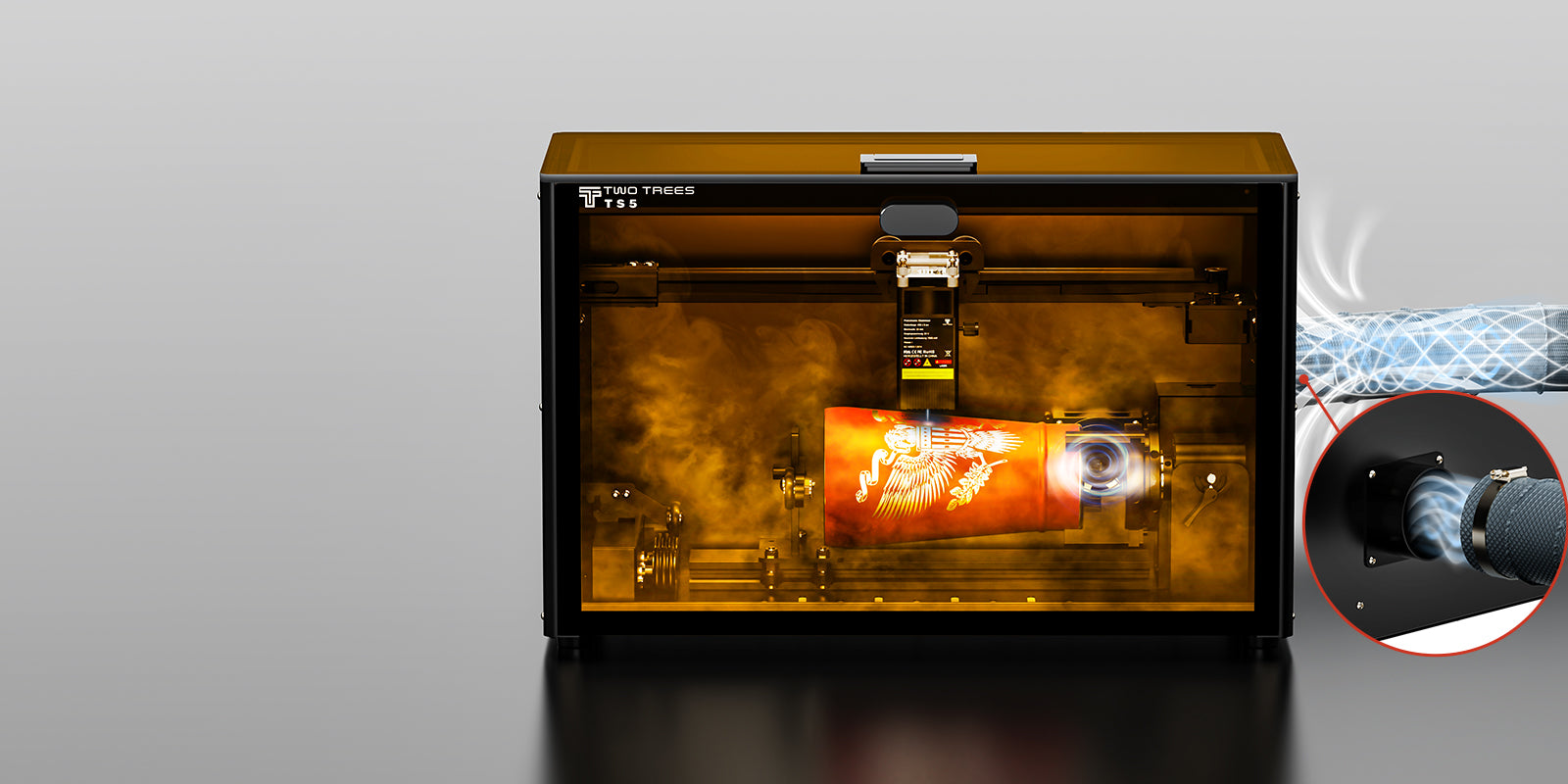

Dust and Smoke Exhaust

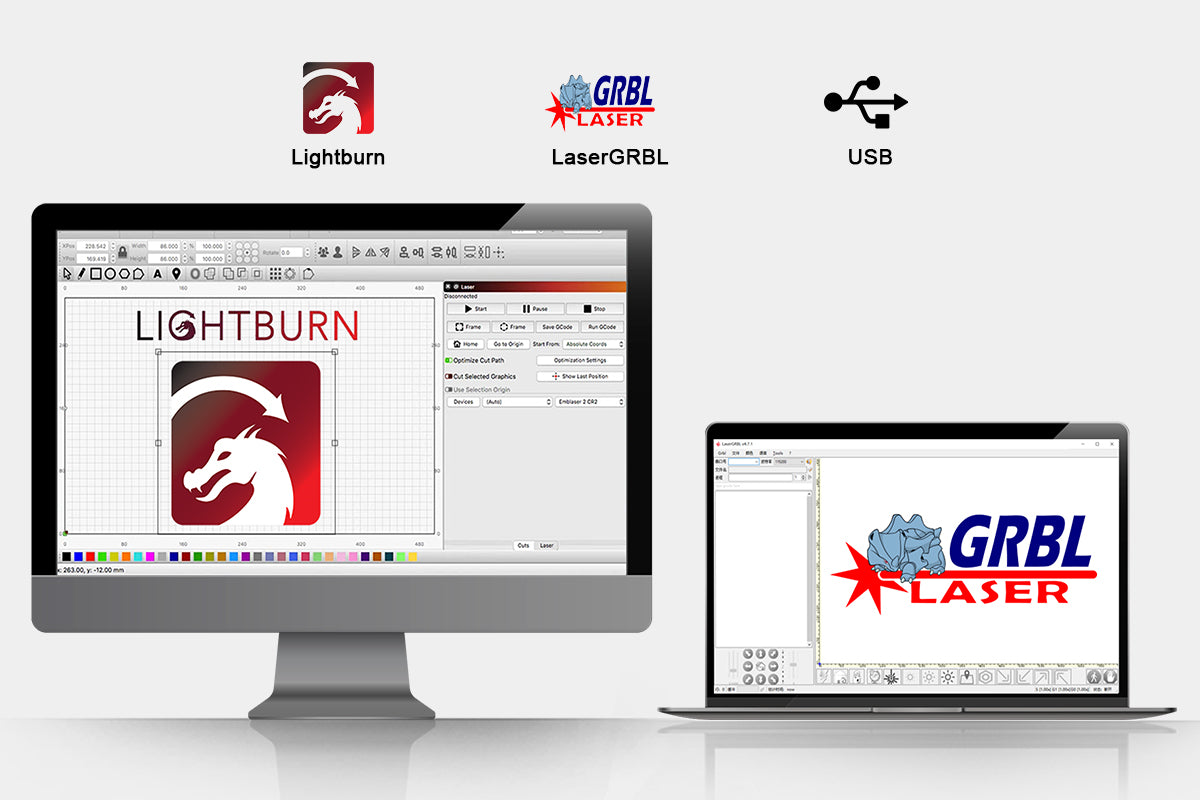

Compatible With Mainstream Software

Special Filtering Material to Effectively Block Harmful Blue Li

Unleash Software Flexibility

Satisfy all Your Creativity From Start to Advanced,Compatible with Lightburn and so on

Product

Specifications

Main material

Aluminum + High Carbon Steel

Net weight

9.13 kg

Gross weight

10.55 kg

Chuck external clamping range

Ø26 – Ø140 mm

Chuck internal clamping range

Ø15 – Ø110 mm

Chuck tilt adjustment angle

-8° to +8°

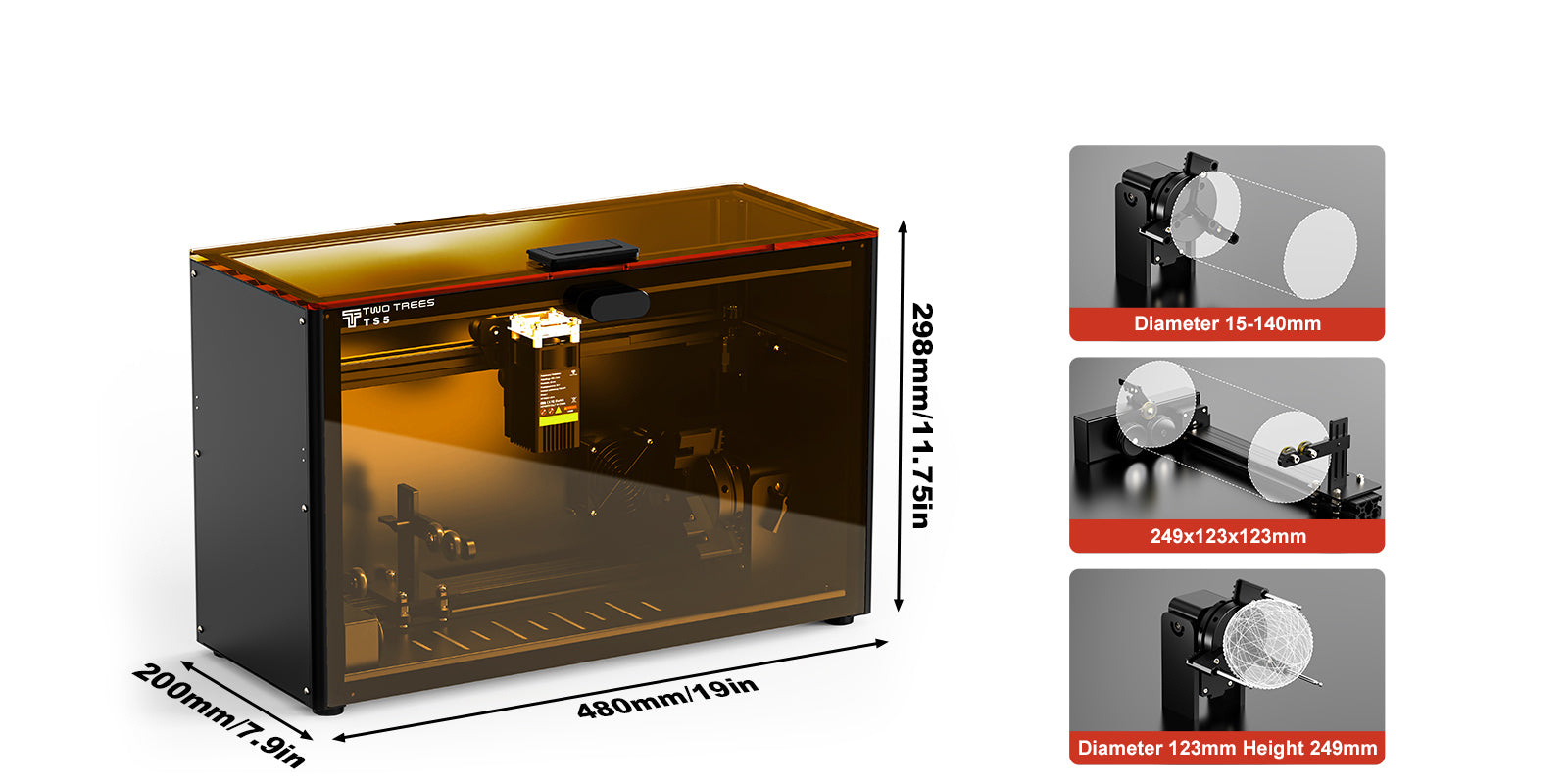

Product dimensions

480 × 200 × 298 mm

Working area

249 × 123 × 123 mm

Package dimensions

553 × 280 × 387 mm

Input voltage

100-240V~50/60Hz

Output voltage

24V

Laser power

7W

Overall power

60W

Wavelength

450 ± 5 nm

Spot size

0.035 × 0.1 mm

Supported

TF Storage Card,USB Port,Wi-Fi
Return to Origin After Engraving,Motion Control,Laser Power Adjustment,External Exhaust Interface

Not supported

Bluetooth, Limit Homing,Power-Off Resume

Optional

Gas Assist, Screen Control

Engraving materials

Mugs,Wine Glasses,Stainless Steel,Rings

Motion structure

XY dual-axis

X/y axis positioning accuracy

0.1mm

Maximum speed

10,000 mm/min

Engraving software

LaserGRBL(Windows), LightBurn(Common)

Supported operating systems

macOS / Windows / Linux

Software languages

Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, etc.

Supported software formats

lbrn,BMP,JPG,PNG,GCODE

Engraving file format

.nc

Safety certifications

CE\FCC\ROHS CE-EMC, CE-LVD, CE-RED, CE-MD, EN60825-1,EN60825-4, ROHS, IEC60825, FCC-Sdoc, FCC-ID, FDA

Operating temperature

5℃ ~ 40℃

Operating humidity

20% ~ 60% RH
