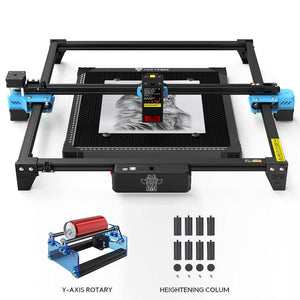

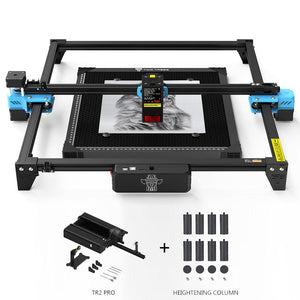

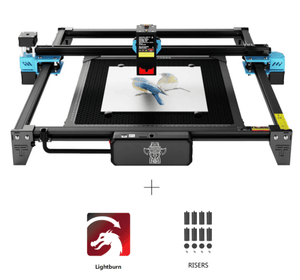

Twotrees TTS-20 Pro 20W Laser Engraver Machine
Shipping calculated at checkout.
Add-ons
-
Twotrees Air Assist Kit 30L/min for TTS Pro/TS2
R$ 443,00
-
Twotrees Extension Kit 600*600mm for Laser Engraver & Cutter TTS Pro / TTS Series
R$ 499,00
-
Twotrees TR2 PRO Rotary Attachment MIN 1 DIA Engraving For Laser Engraver
R$ 723,00
-
Twotrees Laser Lens
R$ 140,00
Ultrafine Engraving Line Thickness
0.13*0.145mm ultra-fine compressed laser spot,smaller engraving Line width for impeccable details
Broad Software Compatibility
Compatible with Windows and macOS system,
LaserGRBL and LightBurn software.
TTS-20 Pro TECHNICAL DATA
Built for precision. Specified in detail.
Every measurement, tolerance, and interface is engineered for repeatable accuracy — so creators can focus on making, not compensating.
Engraving Area
418 × 418 mm
Laser Power
20000mW
Max Speed
30,000 mm/min
Accuracy
0.13×0.145 mm
Laser Wavelength
450±5nm
Weight
3.2 kg
Main Body Material
Aluminum Profile + Plastic Parts
Machine Dimensions
695 × 595 × 125 mm
Engraving Area
418 × 418 mm
Compatible Materials
Wood, Plastic, Paper, Leather, Sponge Paper, Alumina
Machine Weight
3.2 kg
Motherboard
32bit
Engraving Accuracy
0.13 × 0.145 mm
Max Engraving Speed
30000 mm/min
Engraving Method
USB Connect PC, TF Card (APP, Webpage control)
Engraving Mode
Image carving / Text carving / Scanning carving / Contour carving / Pixel carving
Power Requirement
24V 4A DC
Laser Wavelength
450±5nm
Laser Power
20000mW
Motherboard
32bit
Engraving Accuracy
0.13 × 0.145 mm
Max Engraving Speed
30000 mm/min
Engraving Method
USB Connect PC, TF Card (APP, Webpage control)
Engraving Mode
Image carving / Text carving / Scanning carving / Contour carving / Pixel carving
Working Condition
Temperature 5-40°C, Humidity 20-60%RH
Product Comparison
Product
TTS-20 Pro
TTS-10 Pro
TTS-55 Pro
